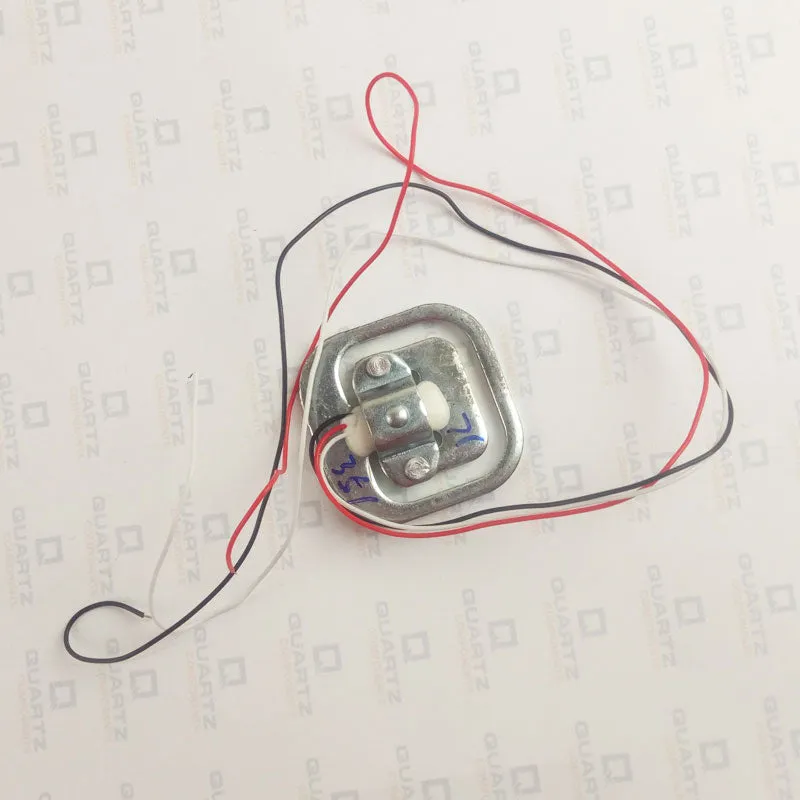

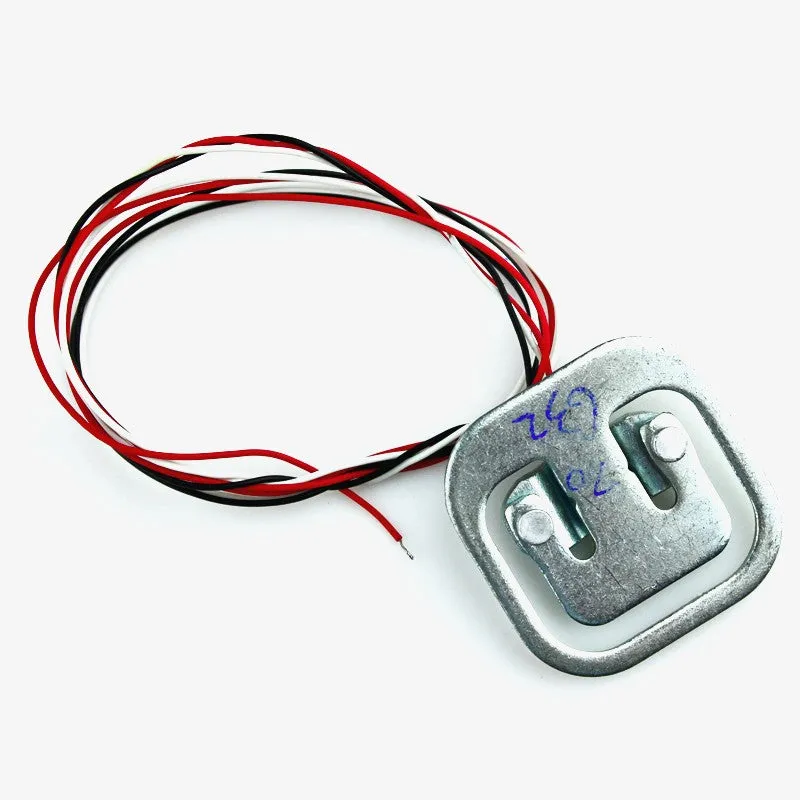

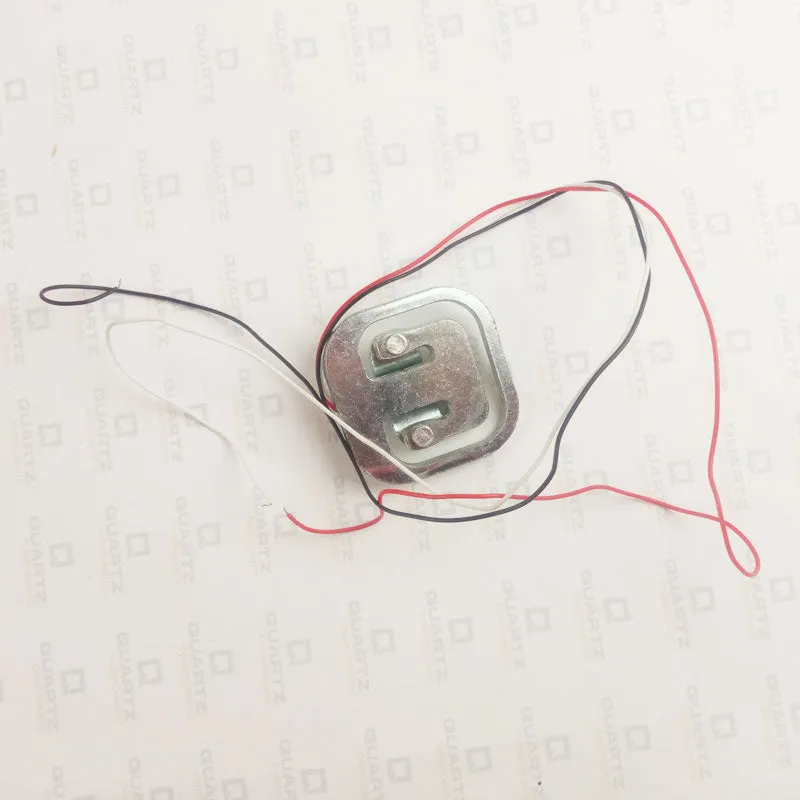

To measure weight and load of any object we use strain gauges but problem with using standalone strain gauge is that they are fragile and are easily bent and break if not used in proper enclosure. To overcome this difficulty this 50 KG Body Load Cell Weighing Sensor comes with a metal enclosure to protect the strain gauge inside. The Load cell is of internal resistance 1000Ω Half Bridge structure so, you will need to connect external resistances to read variation of resistance in full bridge or you can use two or 4 of these load cells to complete the bridge. If you are using 2 or more than two load cell weighing sensors then the weighing limit of the whole combination will increase. They are used in Platform scales, Electronic weighing machines, belt scales etc.

50Kg Load Cell Weighing Sensor Specifications

• Made up of premium metals (aluminium alloy) hence durable and reliable.
• Can take weight of 50kg each.
• 3 wire output.
• Low cost sensor.

Product Description

While using these sensor, we measure the change in resistance between the Red and White or Red and Black Wires. At times the change is so small that you will need an external amplifier like HX711 breakout board to amplify the small changes to readable values that can be read by the microcontroller or ADC ICs.

Package Contents

1×50kg Load Cell Weighing Sensor
