50kWh RUiXU Lithium Batteries Kits | 10 Batteries 10 slot battery cabinet
RX-LFP48100
- Nominal voltage :51.2V
- Nominal [email protected] :100 Ah
- Min. [email protected]:100 Ah
- Nominal energy :5120Wh
- Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
- Weight: ~47kg (103.6lb)
Modular
Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
- Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
- RS485: MPP, Voltronic, RCT, Alpha outback
Standard Included
- (10) RUiXU 48V Server Rack battery (RX-LFP48100)
- (10) RS485 Communication Cable
- (10) Ground Cable
- (10) Set of Parallel 30CM4AWG Cables per battery
- (1) 10 slot battery pre-assembled cabinet

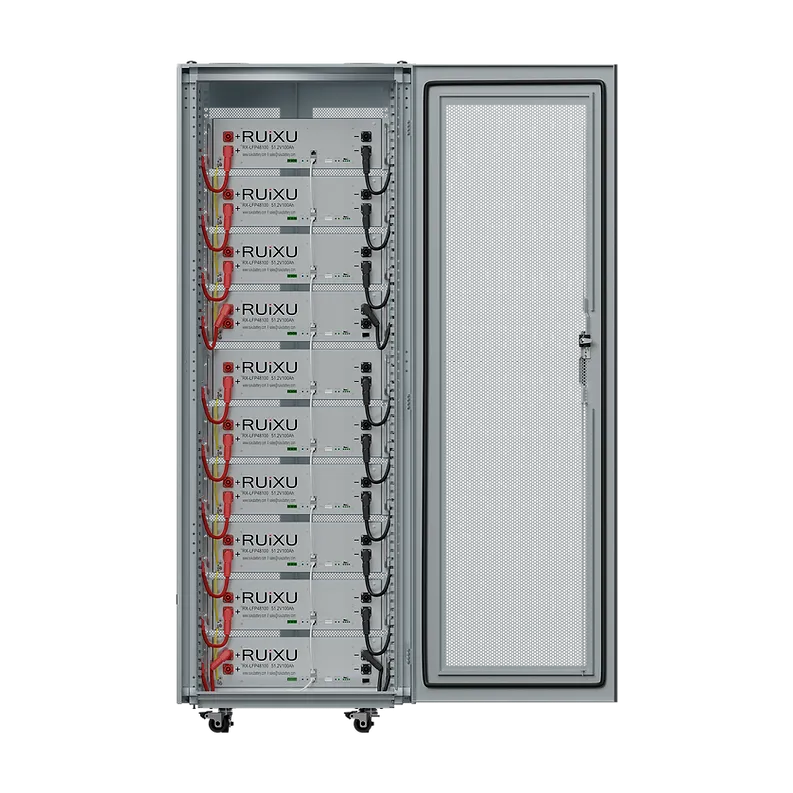

Pre-Assembled 10 Slot Battery Cabinet | busbar & wheels & busbar cover included
- Constructed from heavy-duty steel
- 10 slot Rack
- Durable grey white powder-coated finish
- Heavy-duty bus bars with protective covers
- Lockable front door and side panels
- A set of Cage Nuts screws
- Heavy Duty Casters
- Quick open side panel for easy maintenance.
10 Slot Cabinet Dimension
-
Dimensions (inch): 23.6" W x 29.5" D x63.4" H x69.9" H (with wheels) | 600mmx750x1612x1775.5mm(with wheels)
