The AIMS Power Solar Battery Charge Controller, now available for purchase on Appliance Guys, is an advanced upgrade for your solar system. It features MPPT charging technology and a smart tracking algorithm, ensuring an impressive 97.5-99% efficiency and optimal energy harvest. The controller supports 12-48 volt solar systems and adapts to various battery types. It offers temperature compensation protection and LED indicators. The LCD displays essential information, and parameters can be customized. A robust RS485 connection enables computer monitoring. The controller’s durability is ensured by quality heatsink cooling, over-engineered components, and marine coating. Backed by a 2-year warranty, this controller offers reliability and efficiency.
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
- MPPT Technology: Maximizes power from PV array to battery bank with peak efficiency.
- LED Indicators: Display charging status and faults for user convenience.

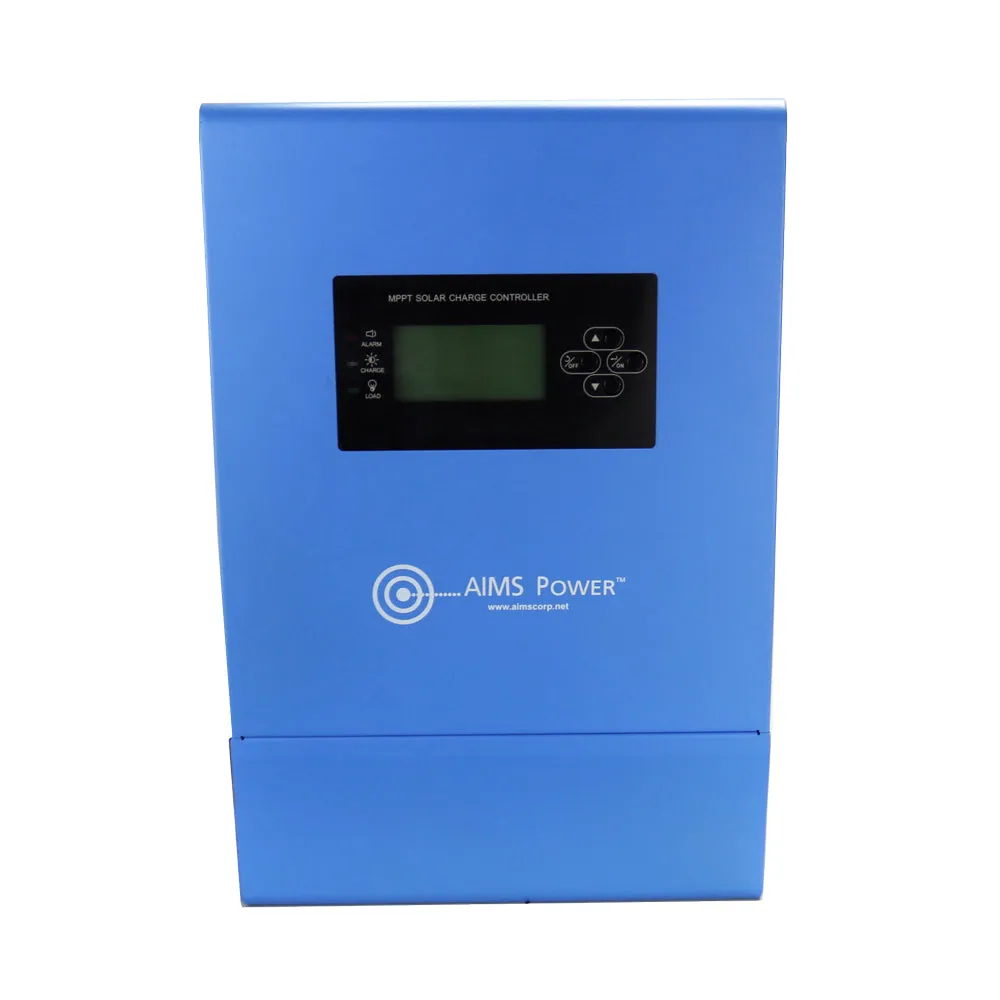

- LCD Display: Shows battery voltage, solar panel details, KWH produced, and more.
- Customizable Parameters: Users can set default values according to system design.

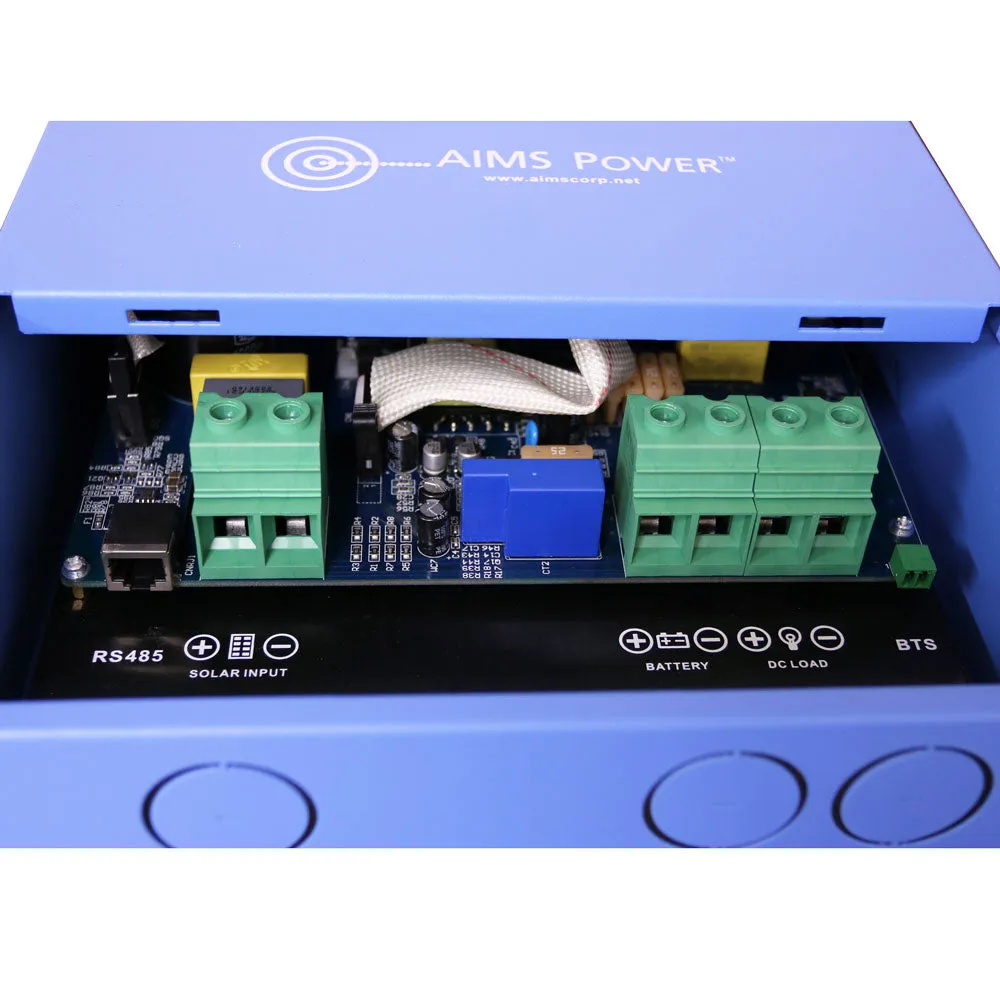

- RS485 Port: Allows computer monitoring of charge controller functions.
- Quality Heatsink Cooling: No fans needed, ensuring efficient temperature control.
- Stackable Design: Offers flexibility in system expansion.
- Rugged Construction: Withstands extreme conditions with a thermal design case.
- Wide Compatibility: Supports gel, sealed, AGM, flooded, lithium, and user-defined battery types.
- 4 Stage Charging: Bulk, absorption, float, and equalize for optimal battery maintenance.
- Optimal Cooling Case Design: Built to endure extreme environmental conditions.
Specifications
Specifications
MPPT Technology:
- PV Operating Voltage: 15-150Vdc@12V, 34-150Vdc@24V, 50-150Vdc@36V, 60-150Vdc@48V
- Rated PV Input: 12V – 1200 Watts, 24V – 2400 watts, 36V – 3600 watts, 48V – 4800 watts
- Maximum Charging Current: 80 amps
- Maximum DC Load Current: 60 amps
- Max PV Open Circuit Voltage: 150Vdc
- Self Power Consumption: <4 watts
- Efficiency: 98.5%
- Protections: Overload, short circuit, high voltage, high temperature, low voltage, auto correct
Charging:
- Battery Types: Gel, sealed, AGM, flooded, lithium, user-defined (adjustable voltage)
- 4 Stage Charging: Bulk, absorption, float, equalize
- Bulk Charge Voltage: Sealed 14.4V, AGM/gel 14.2V, Flooded 14.6V, User-defined 10-15V
- Float Charge Voltage: Sealed/AGM/gel 13.7V, Flooded 13.6V, User-defined 10-15V
- Equalize Charge Voltage: Sealed 14.6V, AGM/gel 14.8V, Flooded 14.8V, User-defined 10-15V
- Low Voltage Reconnection: 12.5V
- Low Voltage Disconnect Voltage: 10.5V (10.5-12.5V adjustable)
Mechanical:
- Enclosure: IP43 protection, metal
- Cooling: Heatsink
- Humidity: 100% non-condensing
- Temperature Compensation: -5mV⁰C / 2V with BTS
- Temperature Range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
- Conformal Coated for Marine Environments

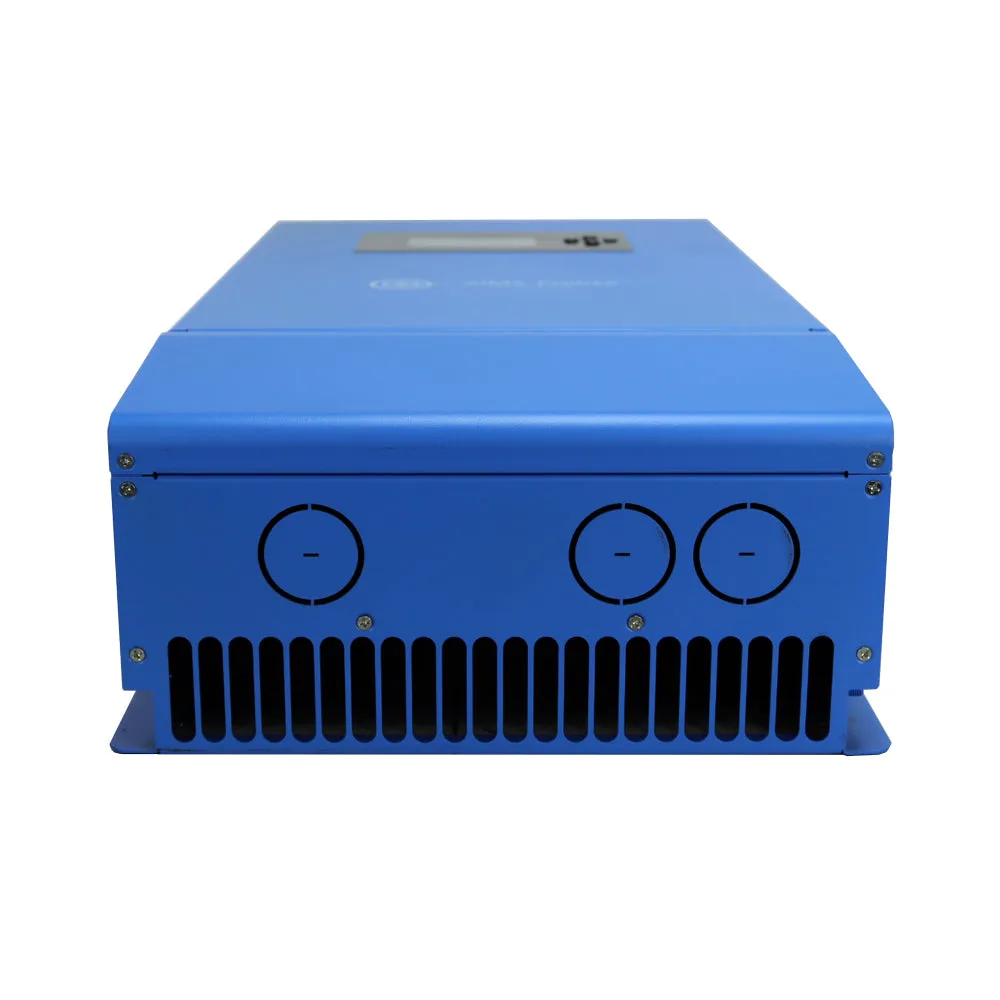

- Wire Knockouts: 1.25”
- Warranty: 2 years
- Certifications: ETL to UL1741, CE, RoHS, CETL
Dimensions
Dimensions:
- Length: 14"
- Width: 9"
- Height: 4.7"
Weight:
- Unit Weight: 19 lbs
- Boxed Weight: 21 lbs
