General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT10KRMXLI
Manufacturer Website Address: www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS On-Line

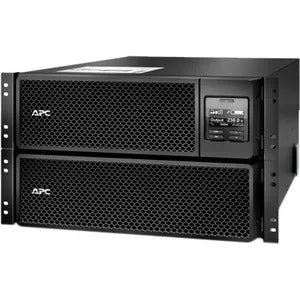

Product Name: Smart-UPS SRT 10000VA RM 230V
Marketing Information:
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Product Type: Dual Conversion Online UPS
Technical Information
Protection Type: Spike
Protection Type: Lightning
Protection Type: Surge
Bypass Switch: Internal
Bypass Switch: Automatic & Manual
Emergency Power OFF: Yes
Power Description
Load Capacity: 10000 VA/10 kW
Output Voltage: 230 V AC
Waveform Type: Sine Wave
Circuit Breaker: Yes
Management
Alarm: Battery Failure
Controls/Indicators
Status Indicators: LED Indicators
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
Total Number of Expansion Slots: 1
Battery Information
Number of Batteries: 2
Battery Characteristics: Maintenance-free, Sealed, Spill-proof
Battery Chemistry: Sealed Lead Acid (SLA)
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 12 Minute
Typical Battery Recharge Time: 1.50 Hour
Hot Swappable: Yes
Environmental Conditions
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 55 dB(A)
Thermal Dissipation: 586.73 W
Physical Characteristics
Color: Black
Height: 10.4"
Width: 17"
Depth: 28.1"
Rack Height: 6U
Form Factor: Rack-mountable
Weight (Approximate): 246.52 lb
