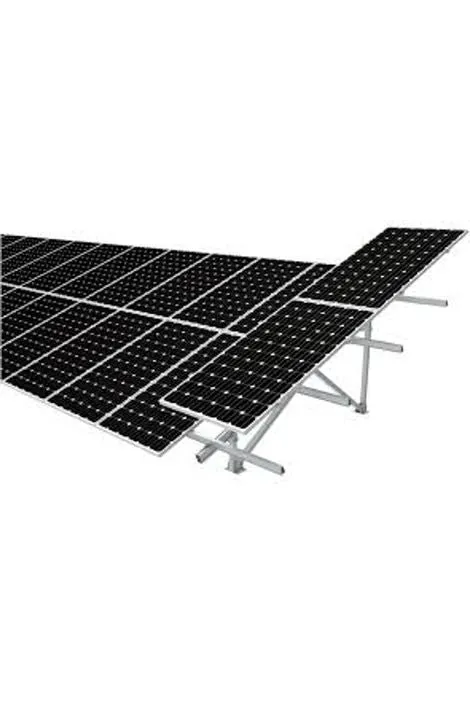

Introducing the Chiko S-U2V Solar Panel Ground Mount System – a solution tailored to seamlessly accommodate both concrete foundation and ground screw foundation solar farms. Crafted from high-performance, all-galvanized materials, this system is built to endure, boasting a service life of over 30 years.
Streamlined for quick and easy assembly in the field, all components come pre-cut and pre-drilled. This not only enhances installation efficiency but also significantly reduces time and labor costs for large-scale solar farm construction.
The Chiko S-U2V stands out for its versatility and scalability, making it the ideal choice for adapting to various configurations and terrains, ensuring a perfect fit for your solar project.
Variability
- Compatible with both framed and frameless PV modules.
- Fixed 20 degree tilt
- Suitable for installation on both ground screw and concrete foundations.
- Supports portrait configurations.
Universal Engineering
- Structurally designed to meet all relevant building codes, local regulations, and design load requirements.
- Tailored to account for regional weather hazards and site-specific static calculations.
- Comprehensive analysis of wind and snow load considerations.

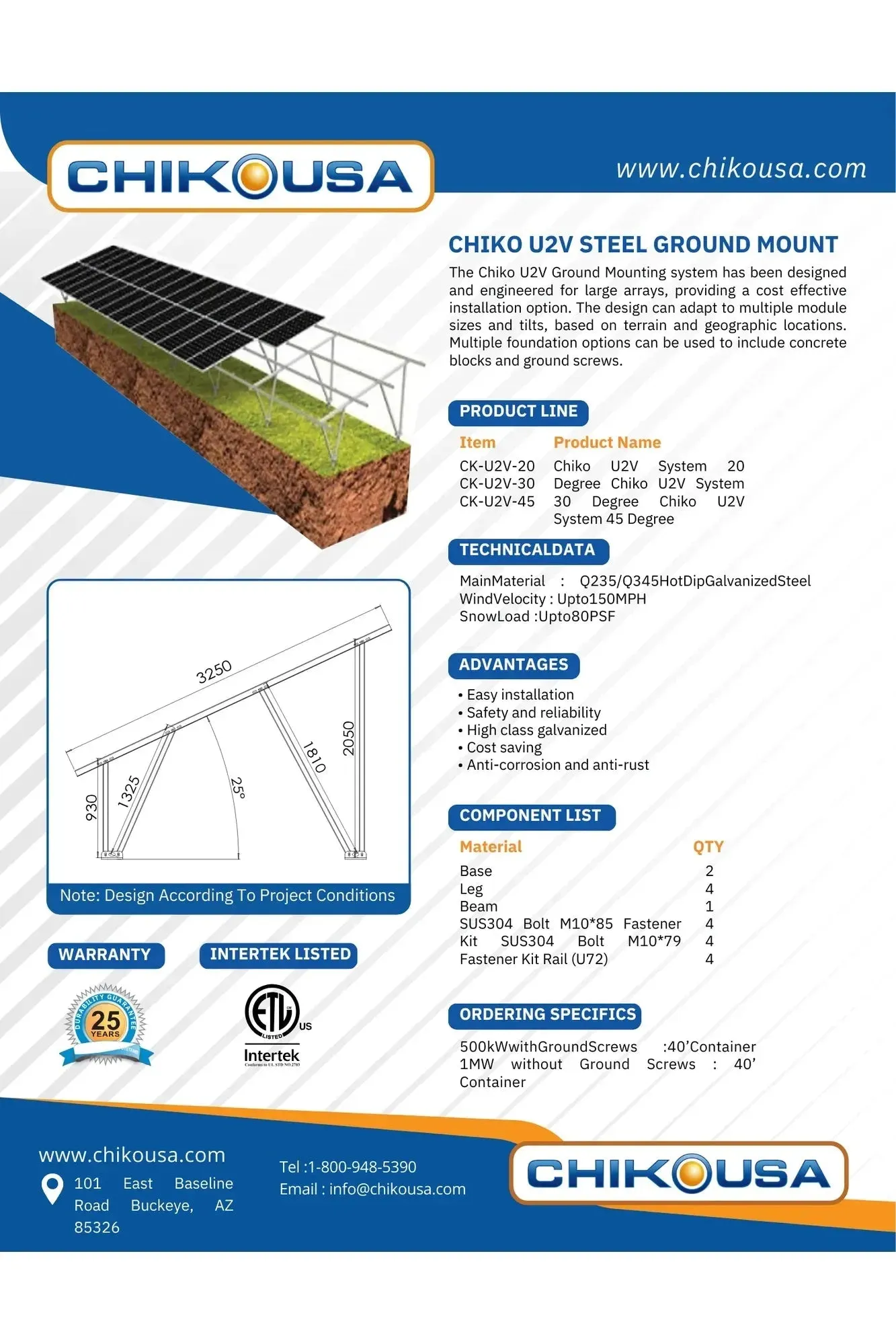

Component Features

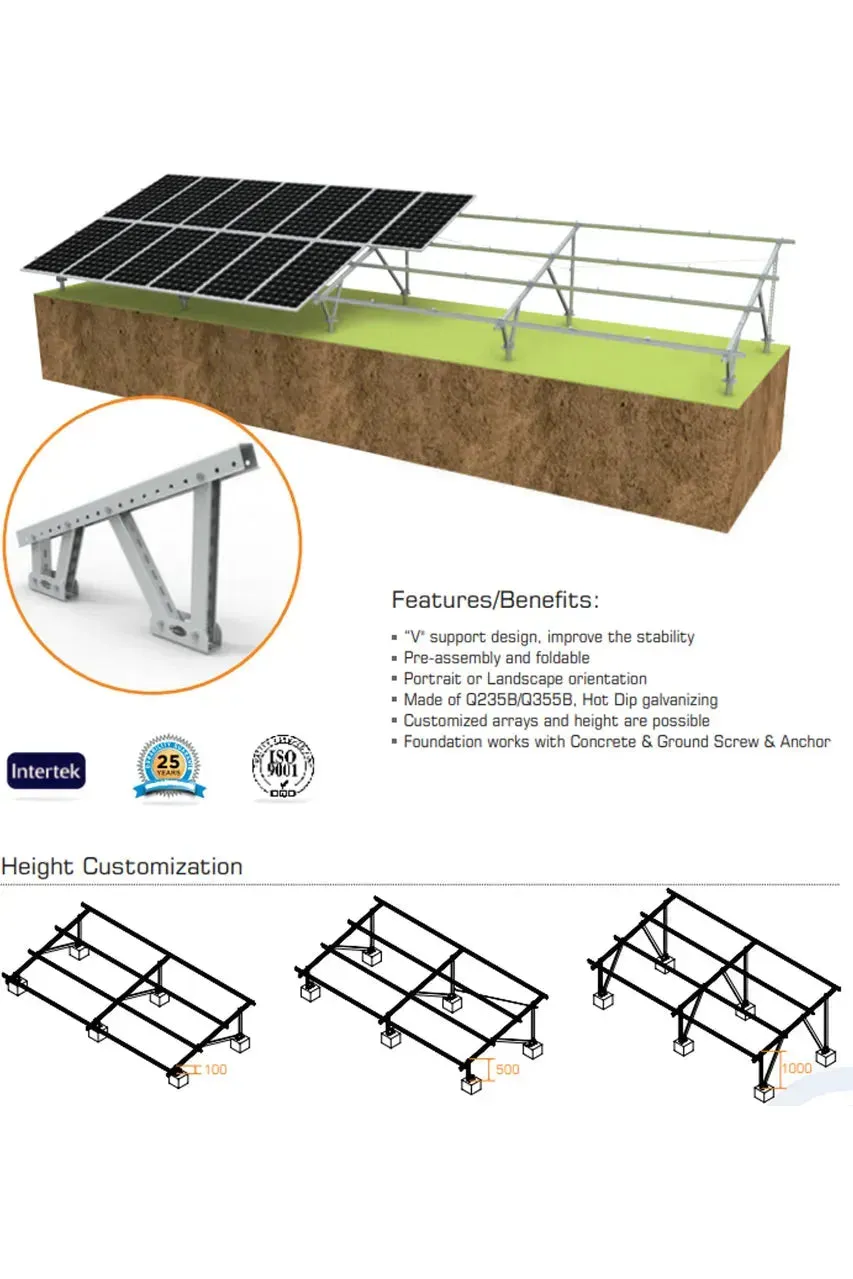

- Made from hot-dip galvanized steel with exceptional corrosion resistance.
- Quick and easy assembly thanks to highly prefabricated components, eliminating the need for in-field drilling, cutting, or welding.
Shipping -
This product will be a Terminal or Business with loading dock Delivery Only.
This product will not be able to be shipped direct to consumer.
This product will not be available on any shipping deals / coupons that are active.

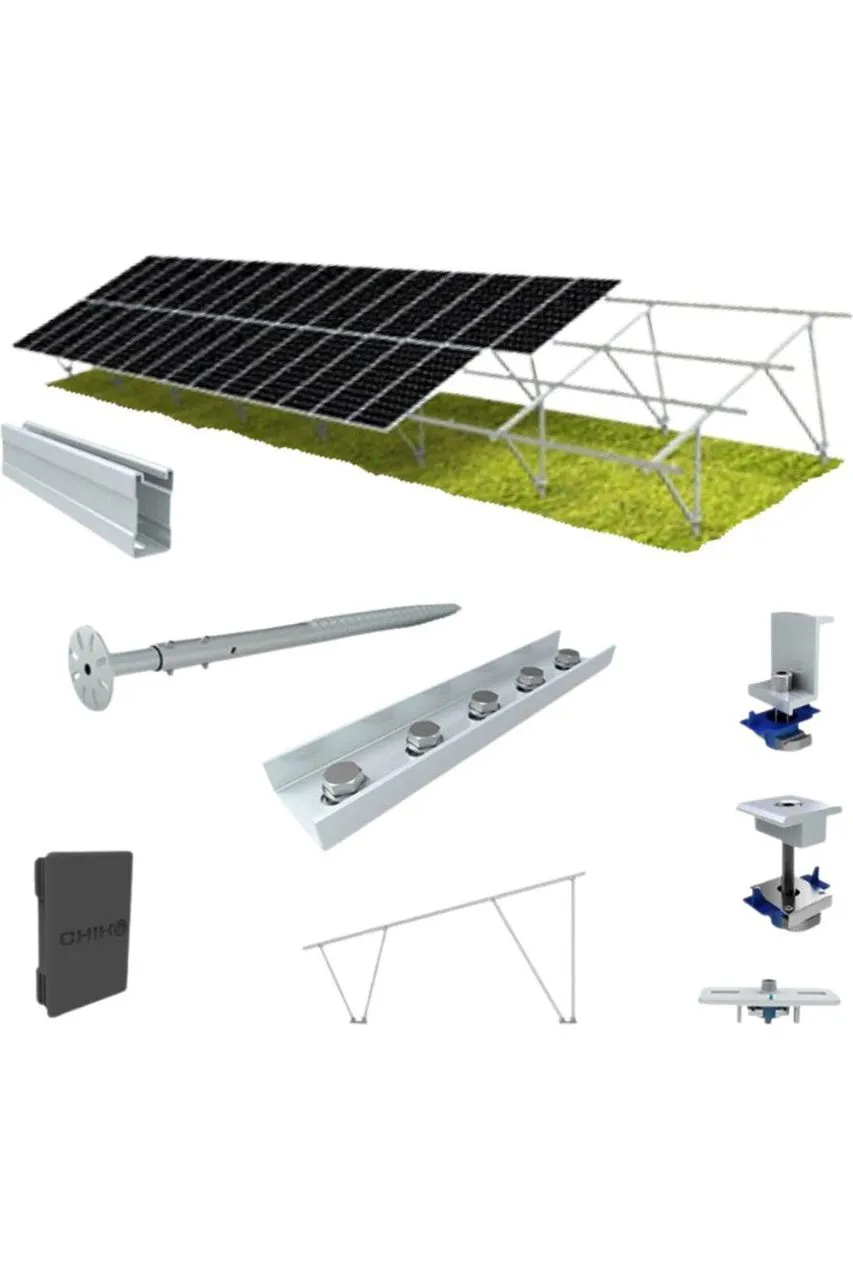

What's Included With Your Chiko GroundFlex U2V Steel Ground Mount Kit?
| KIT-CH0000-24: | KIT-CH0000-30: |
| ✔ 16 X Rail 4150 | CK-UR72-T2.5-001- 4150 - Rail 4150 | ✔ 20 X Chiko Solar Standard U82 Rail 3450mm |
| ✔ 12 X Chiko Solar Standard U82 Rail Splice Kit | ✔ 16 X Chiko Solar Standard U82 Rail Splice Kit |
| ✔ 44 X Chiko Solar Mid Clamp 35mm | ✔ 56 X Chiko Solar Mid Clamp 35mm |
| ✔ 8 X Chiko Solar End Clamp 35mm | CK-749RU-K-(30-42)-40 - End Clamp with Earthing | ✔ 8 X Chiko Solar End Clamp 35mm | CK-749RU-K-(30-42)-40 - End Clamp with Earthing |
| ✔ 7 X Support Beam | CK-U2V-048(155-S138) | ✔ 9 X Support Beam | CK-U2V-048(155-S138) |
| ✔ 28 X Bolt Kit for V-Leg attached to Beam | CK-HS-006-2 - Bolt Kit V-Leg | ✔ 36 X Bolt Kit for V-Leg attached to Beam | CK-HS-006-2 - Bolt Kit V-Leg |
| ✔ 7 X Front V ( pre-assemble ) | CK-U2V-V-275/1090- Front V (Pre-Assem) | ✔ 9 X Front V ( pre-assemble ) | CK-U2V-V-275/1090- Front V (Pre-Assem) |
| ✔ 7 X Rear V ( pre-assemble ) | CK-U2V-V-1230/1476 - Rear V (Pre-Assem) | ✔ 9 X Rear V ( pre-assemble ) | CK-U2V-V-1230/1476 - Rear V (Pre-Assem) |
| ✔ 7 X Strengthen Pipe | CK-PL-84-3000 | ✔ 9 X Strengthen Pipe | CK-PL-84-3000 |
| ✔ 14 X Strengthen Pipe Fix Kit Bracket | CK-PL-084-3000 | ✔ 18 X Strengthen Pipe Fix Kit Bracket | CK-PL-084-3000 |
| ✔ 28 X Strengthen PIPE Fix Kit | CK-PL-084-3000 |- Strengthen PIPE Fix Kit / Bolt Nut and Washer | ✔ 36 X Strengthen PIPE Fix Kit | CK-PL-084-3000 |- Strengthen PIPE Fix Kit / Bolt Nut and Washer |
| ✔ 14 X Bolt Kit attached to Leg | CK-JGH-Q1030-2 - Bolt Kit attached to Leg | ✔ 18 X Bolt Kit attached to Leg | CK-JGH-Q1030-2 - Bolt Kit attached to Leg |
| ✔ 28 X Bolt Kit for Rail attached To Beam | CK-JGW-Q1030-2 | ✔ 36 X Bolt Kit for Rail attached To Beam | CK-JGW-Q1030-2 |
| ✔ 14 X Ground Screw | CK-GST-N16-3.0T2(H)-500-1600 - Ground Screw | ✔ 18 X Ground Screw | CK-GST-N16-3.0T2(H)-500-1600 - Ground Screw |
| ✔ 84 X Adjustable Flange / Bolt to Fix Flange | CK-GST-N16-3.0T2(H)-500-1600 - Adjustable Flange / Bolt to Fix Flange | ✔ 108 X Adjustable Flange / Bolt to Fix Flange | CK-GST-N16-3.0T2(H)-500-1600 - Adjustable Flange / Bolt to Fix Flange |
| ✔ 28 X Bolt for Support fasted on ground screw | CK-JGH-Q1235-2 - Support bolt Ground Screw | ✔ 36 X Bolt for Support fasted on ground screw | CK-JGH-Q1235-2 - Support bolt Ground Screw |
| ✔ 28 X Chiko Expand bolt M12*150mm | ✔ 36 X Chiko Expand bolt M12*150mm |
| ✔ 1 X Grounding Lug | CK-592RU-1-20 - Grounding Lug | ✔ 1 X Grounding Lug | CK-592RU-1-20 - Grounding Lug |
| ✔ 24 X CK-003RU-37 | Micro Inverter Kit (Hardware) | ✔ 30 X CK-003RU-37 | Micro Inverter Kit (Hardware) |
