CPS Products SVW Wireless Solenoid Valve

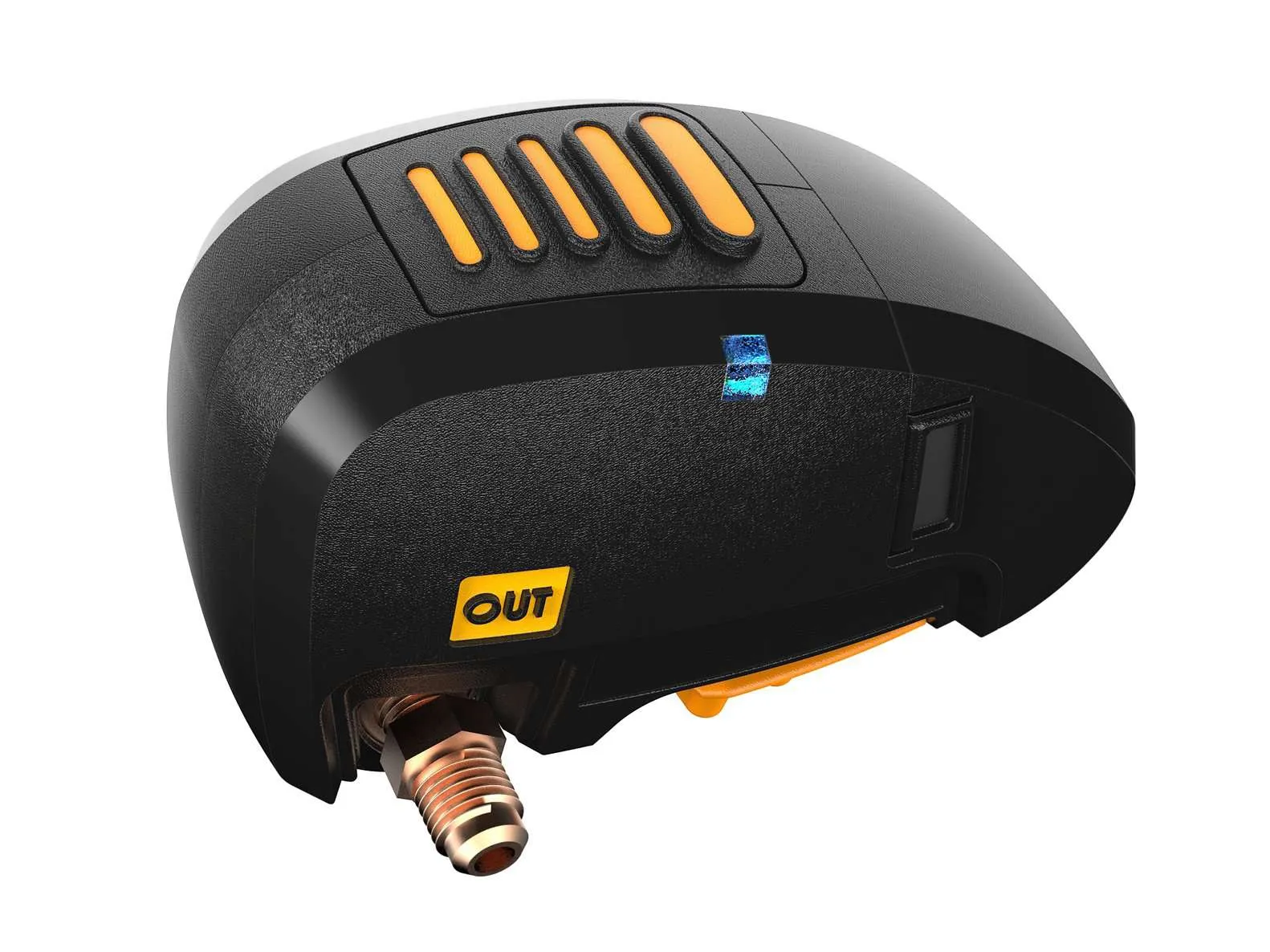

The SVW is a compact, battery operated wireless solenoid with "IN" and "OUT" 1/4" SAE male ports that quickly open or close, to control refrigerant flowing through connected hoses. The SVW can be used for MANUAL Charging, Recovery or Evacuation procedures. It may also be used for AUTOMATIC Charging and Recovery when paired with a mobile device running the CPS Link app.

Manual Charging, Recovery or Evacuation

Once powered on, the SVW can be "manually" opened or closed by pressing the ON/OFF button. Each press of this button will "cycle" the valve to open or close (in 100 milliseconds).

Automatic Charging or Recovery

In either mode, the SVW will precisely control refrigerant flow in one of two ways;

  1. Pair the SVW to the CPS CC220EW Enhanced Wireless scale (sold separately). Then, input a charge or recovery weight into the scale's corded hand control (memory).
  2. Pair the SVW to a mobile device running the CPS Link™ app. Then, pair the mobile device to any CPS wireless scale, and input a charge or recovery weight into the mobile device. In both methods, weight sensed by the scale is transmitted to the SVW, which opens or closes to regulate refrigerant flow through hoses connected to a supply or recovery tank.

SVW Key Features:

  • Ensures fast, precise control of refrigerant during service routines
  • Saves time, reduces cost and extends service equipment life
  • Compatible with all common CFC, HFC, HCFC refrigerants and blends
  • Operates with CPS Link™ app

Additional Features when Paired to a Mobile Device (Running CPS Link™ App)

  • Pair with other wireless devices – To automate Charging, Recovery & Evacuation
  • Key controlling functions and readouts – Conveniently located on your mobile device
  • Store Job Data – Work order, invoice number, customer, log of refrigerant use.
  • Creates and Store Customer Data – Name, address, e-mail, phone, notes.
  • Test Logs – Measurements, results of tests associated with services performed.
  • Export – e-mail specific files to customer or home office.
  • Tank Tracker™ – Convenient refrigerant tank management system for tracking refrigerant used on job sites (for Supply & Recovery tanks and refrigerant type in each tank), plus time, date and geotag location where used.
  • Operates in ISM band – For international use.


      SVW SPECIFICATIONS

      Control By Wireless/Corded Scale:Use with CC220EW (With LCD display)
      Control By Mobile Device Running CPS Link™ App:Use with CC220EW or other wireless scale
      Turn ON:Press ON/OFF button (2 secs) until LED turns green. Release button to operate.
      Turn OFF:Press and hold ON/OFF button (5 secs) until LED turns OFF. Release button.
      Cycle Solenoid ON/OFF (While SVW ON):Press and release (pulse) the button.
      Auto Power Off (ENABLED):SVW turns OFF after set period of inactivity (default: 10 mins)
      Auto Power Off (DISABLED):Disable via APP
      Charge/Recover Alarms:In CC220EW control and mobile device
      Transmission Range (Line Of Sight):Up to 150 feet
      Frequency Range:2400 to 2480 MHz
      Power Source:9V Alkaline (Included)
      Continuous Battery Life:Up to 500 hours
      Battery Status Indicator:On handheld corded display, or mobile device
      Width x Length x Height, Weight ( Soft Case, Battery):2.7” x 4.5˝ x 3˝ (70 x 83 x 76 mm), 11.5 Oz (0.32 kg)
      Maximum Working Pressure:500 Psig (34.5 Bar)
      Maximum Operating Differential:485 Psig (33.5 Bar)
      Operating Temperature:14F to 122F (-10C to 50C)
      Operating Humidity:0% to 95% (Non-condensing)
      IN/OUT Fittings:Brass, 1/4˝ SAE male
      Refrigerant Compatibility:All common CFC, HFC, HCFC refrigerants and blends
      Approvals:FCC, CE, IC, ICES-003
