CyberPower CST150UC-R 1500VA/900Watts Simulated Sine Wave Battery Backup Surge Protection UPS - Certified Refurbished

Description

A mini-tower UPS with line interactive topology, the CyberPower CST150UC provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking equipment, smart home devices, and home entertainment systems.The CST150UC uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.

Features

• 1500VA/900Watts Simulated Sine Wave UPS

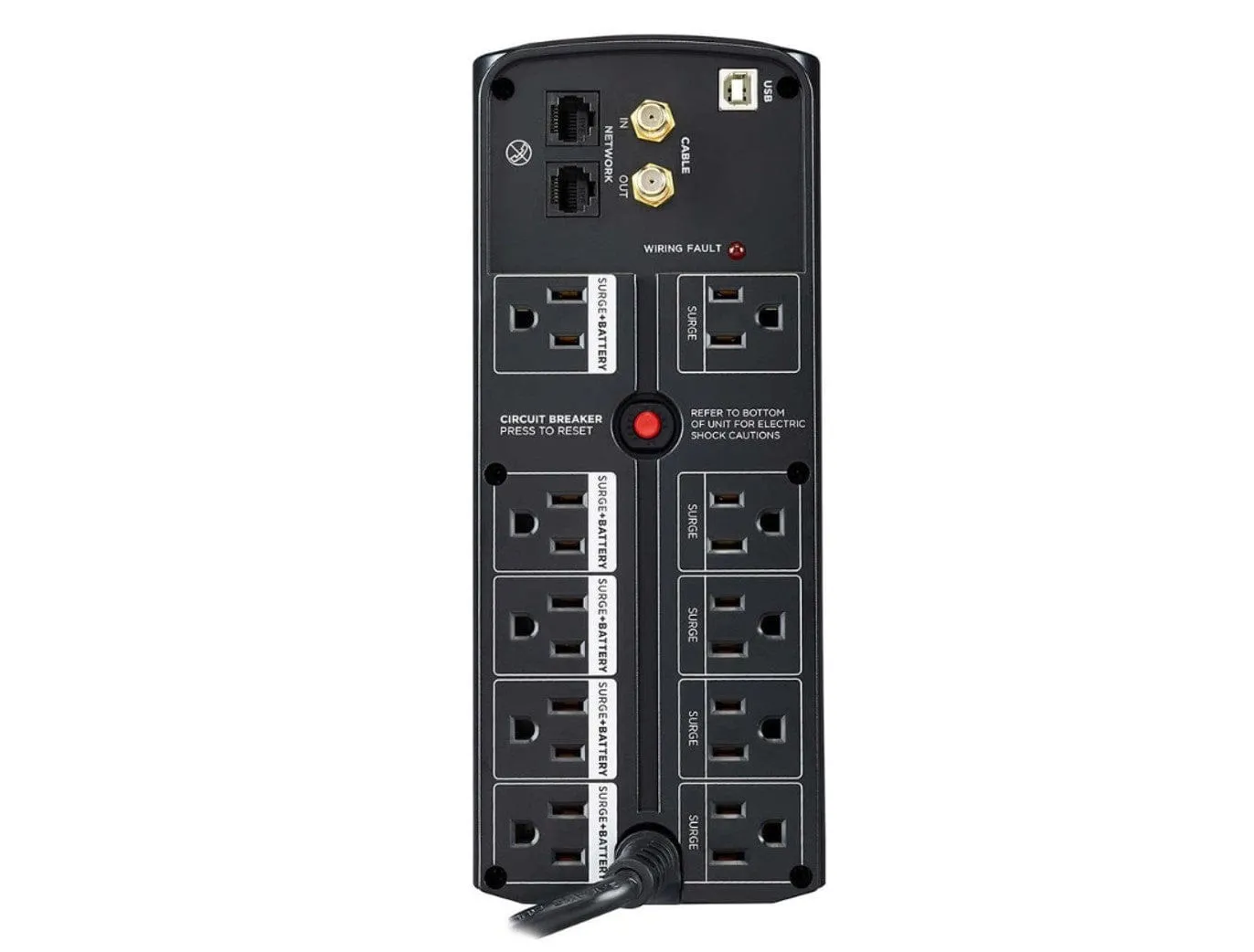

• 10 Outlets (5 surge, 5 surge battery backup)
• 1x USB Type-A, 1x USB Type-C PD Charge Ports @ 30W Total Output
• Surge Protection 1500 VA / 900W
• Multifunction LCD Panel
• Automatic Voltage Regulation

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Automatic Voltage Regulation (AVR)

Increases the AC power and maintains a safe voltage level without switching to battery mode and conserves battery life.

USB Charge Ports

Rapidly charge and power USB devices whether the UPS is providing utility or battery backup power.

Multifunction LCD

Displays immediate, detailed information on the battery backup and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

Data Line Protection

Prevents power surges that travel through coaxial and Ethernet lines from causing damage to electronics.

Line Interactive Topology

Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Simulated Sine Wave Output

Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.

ENERGY STAR

This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

GreenPower UPS™ Bypass Design

A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

Ultra Quiet Design

Minimizes noise during operation for a quieter environment.

PowerPanel® Personal Software

Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.

Specifications

General
Energy Saving	GreenPower UPS™ Bypass Technology
Energy Star Certified	Yes
UPS Topology	Line Interactive
Battery
Battery Quantity	2
Battery Size	12 V / 9 Ah
Battery Type	Sealed Lead-Acid Battery
Replacement Battery Cartridge	RB1290X2
Replacement Battery Cartridge Quantity	1
Runtime at Full Load	2 min
Runtime at Half Load	13 min
Typical Recharge Time	8 Hours
User Replaceable Battery	Yes
Input
Circuit Breaker	15 A
Cord Length	6 ft (1.8 m)
Input Frequency Range	57 Hz – 63 Hz
Input Plug Type	NEMA 5-15P
Input Voltage Range	90 VAC – 142 VAC
Nominal Input Voltage	120 VAC
Plug Style	Right Angle – 45° Offset
Output
Automatic Voltage Regulation	Single Boost
On AC WaveForm	Sine Wave
On Battery Frequency	60 Hz ± 1%
On Battery Voltage	120 VAC ± 5%
On Battery Waveform	Simulated Sine Wave
Outlet Type	10 – NEMA 5-15R
Outlets – Battery & Surge Protected	5
Outlets – Surge-Only Protected	5
Outlets – Total	10
Outlets – Widely Spaced	2
Output Power Factor	0.6
Overload Protection	Internal Circuitry Limiting
	Circuit Breaker Protected
Typical Transfer Time	4 ms
USB Charge Port	Yes
USB Charge Port Type	1 Type A
	1 Type C
USB Charge Port Watts	30 Watts
VA	1500 VA
Watts	900 W
Surge Protection & Filtering
Coax Protection RG6	1 in
	1 out
EMI/RFI Filtration	Yes
Network Protection RJ45	1-in / 1-Out (10/100/1000)
Surge Suppression (Joules)	1500 J
Management & Communications
Audible Alarms	Battery Mode
	Low Battery
	Overload
	Fault
HID Compliant USB Port	Yes
LCD	Multifunction LCD
LED Indicators	Power On
	Wiring Fault
Management Cable	USB Cable
Serial Port	1 Dry Contact
Software (Free Download)	PowerPanel® Personal
Physical
Color	Black
Form Factor	Mini-Tower
Material of Construction	Plastic
Dimensions
Weight	25 lb
Dimensions	9.8in x 3.9in x 13.7in
