Features:
- Load cell
- Closed loop
- Automatic conversions
- Touch screens
- One Touch testing
Call for Quote
We will beat any advertised price

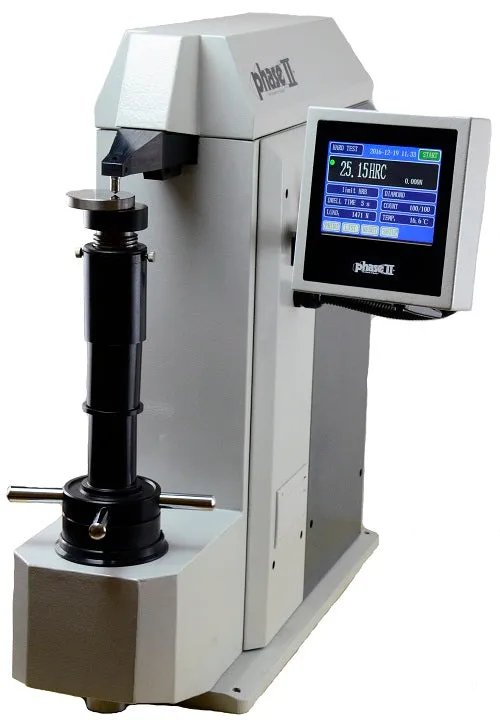

Digital Rockwell Hardness Tester
This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled Touch Screen with USB output to PC. The 900-367 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell hardness scales.
- Entire Rockwell Hardness Test Cycle Performed Automatically.
- Direct Loading Method with Load-Cell Instead of Dead Weight System.
- High Speed Test Cycle and Extremely Accurate Loading Control
- Automatic conversions to HB, HV, Other Rockwell Scales
- Touch Screen selectable system
- Upper/Lower Limit Settings
Accessories:
- C/N scale Diamond Indenter
- 1/16” Ball Indenter
- 3-HRC test Blocks
- 1-HRB test Blocks
- 1-HRA test Blocks
- Test Table 5.87"(150mm)
- Flat Anvil 2.5" (63mm)
- Std. V- Anvil
- Accessory Case
Specifications:
Minor Load |
10 kgf |
Major Load |
60 kgf, 100 kgf, 150 kgf |
Test Force Application |
Load Cell Closed Loop |
Test Force Control |
Motorized |
Results Display |
Hi Def LCD Digital Readout |
Resolution |
0.01HR |
Vertical Capacity |
7.80” |
Throat Depth |
5.90” |
Height |
27.5”/700mm |
Width |
23.6”/600mm |
Depth |
9.84”/250mm |
Weight |
220 lbs/100Kg |
Test resolution |
0.01HR Rockwell unit |
Operation temperature |
50° - 95°F (10ᵒC~35ᵒC) |
Ambient environment |
clean, no vibration, no strong magnetic field, and no corrosive medium |
Power supply |
single phase, AC, 110-220 with manual change, 50~60Hz, 4A |
Machine dimension |
27.5”x23.6”x9.84”/700mm×250mm×600mm |
