Features:
- This digital Rockwell hardness tester with fully automated load/unload procedures provides highly sensitive and accurate readings
- Micro computer-controlled Touch Screen with USB output to flash drive
- The 900-415 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter
- Capable of testing in all the regular Rockwell hardness scales
- Direct Loading Method with Load-Cell Instead of Dead Weight System
- High Speed Test Cycle with Precision Accurate Loading Control
- Automatic conversions to HB, HV, Superficial Rockwell Scales
- Load Cell
- Closed Loop System
- Test resolution: 0.01HR
- Cast Iron Body
- Touch Screen
- Upper/Lower Limit Settings
- Operation temperature: 50° - 95°F (10ᵒC～35ᵒC)
- Ambient environment: clean, no vibration, no strong magnetic field, and no corrosive medium
- Power supply: single phase, AC, 110-220 with manual change, 50～60Hz, 4A
Call for Quote
We will beat any advertised price

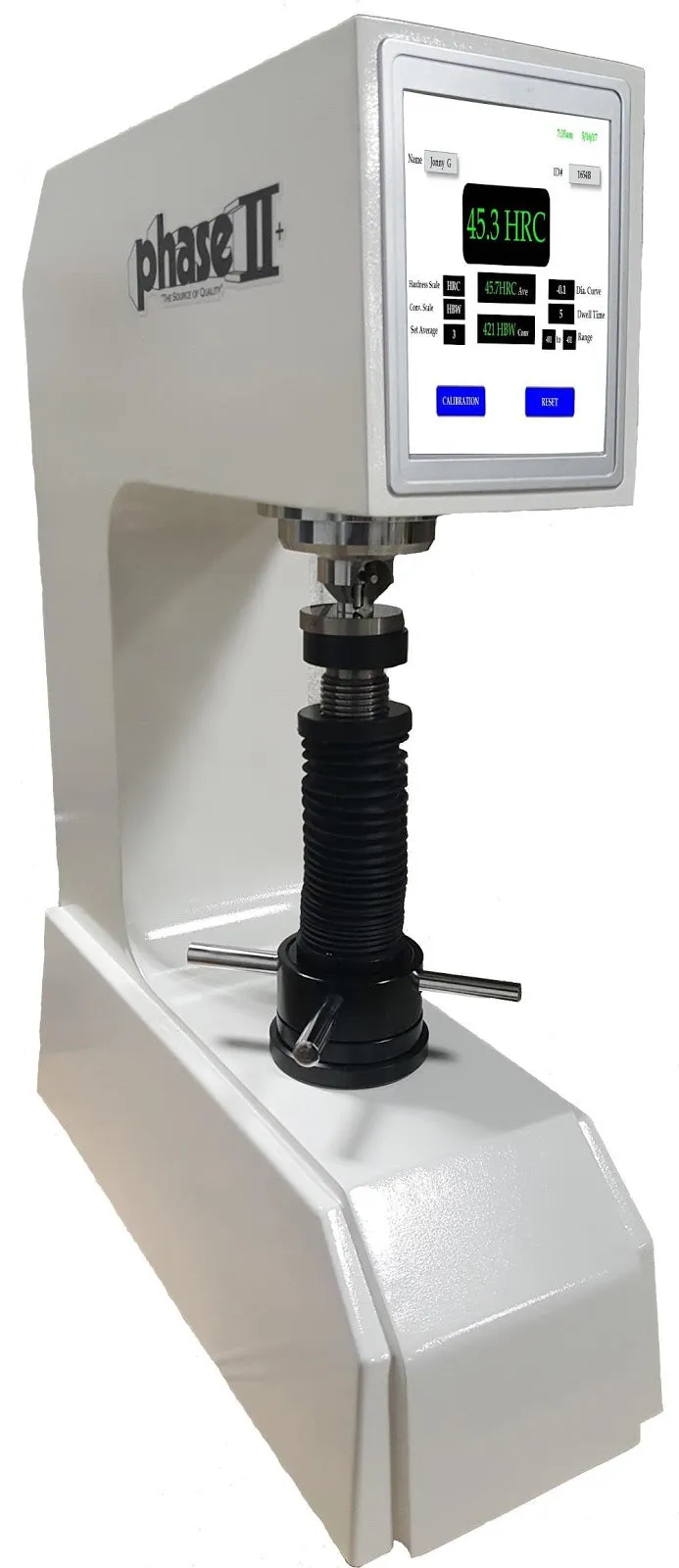

Digital Rockwell Hardness Tester
Phase II hardness testers are renowned for their precision, design and ease of use. The 900-415 Digital Rockwell Hardness Tester combines ease of use with reliable precision and accuracy. Although it is a precision instrument, the Phase II 900-415 stands up to almost any challenging environment without any loss of performance quality. This hardness tester can be used in laboratories, machine shops, heat treatment facilities, inspection labs, tool rooms, etc. Provided free of charge is lifetime technical support that comes standard with every Phase II 900-415 Digital Rockwell Hardness Tester. Use it with confidence, trusting the accuracy you can expect from a Phase II hardness tester.
Accessories:
- C-scale Diamond Indenter
- 1/16” Ball Indenter
- 3- HRC test Blocks
- 1- HRB Test Block
- Test Table 5.87” (150mm)
- Flat Anvil 2.5” (63mm)
- V- Anvil
- Dust Cover
- Accessory Case
Specifications:
|
Minor Load |
10 Kgf |
|
Major Load |
60 Kgf, 100 Kgf, 150 KGF |
|
Test Force Application |
Load Cell Closed Loop |
|
Test Force Control |
Motorized |
|
Results Display |
Hi Def LCD Digital Readout |
|
Resolution |
0.1HR |
|
Vertical Capacity |
8.0” |
|
Throat Depth |
7.8” |
|
Height |
22” |
|
Width |
8” |
|
Depth |
31” |
|
Weight |
175 lbs |
|
Scale |
Indenter |
Initial Test Force |
Total Test Force |
Application Scope |
|
A |
Diamond |
98.07(N) 10kg |
588.4(N) 60kg |
hard alloy, carbide, surface quenched steel, etc. |
|
D |
980.7(N) 100kg |
thin steel sheet, surface quenched steel, etc. |
||
|
C |
1471(N) 150kg |
quenched steel, tempered steel, hard cast iron, etc. |
||
|
F |
1/16” Carbide Ball |
588.4(N) 60kg |
cast iron, aluminum, magnesium alloy, bearing alloy, etc. |
|
|
B |
980.7(N) 100kg |
mild steel, copper alloy, annealed steel, etc. |
||
|
G |
1471(N) 150kg |
phosphor bronze, beryllium copper, malleable iron, etc. |
||
|
H |
1/8” Carbide Ball |
588.4(N) 60kg |
aluminum, zinc, lead, etc. |
|
|
E |
980.7(N) 100kg |
bearing alloy, tin, hard plastics, etc. |
||
|
K |
1471(N) 150kg |
|||
|
L |
1/4” Carbide Ball |
588.4(N) 60kg |
hard plastic, hard rubber, aluminum, tin, copper, mild steel, synthetic resin and friction materials, etc |
|
|
M |
980.7(N) 100kg |
|||
|
R |
½” Carbide Ball |
588.4(N) 150kg |
