Product Details
＋
Capacity: 10.5 Gal /13.2 Gal (40L/50L) | Swath: 36ft | Max Flow: 6.3 gal/min (24 LPM )
Overview

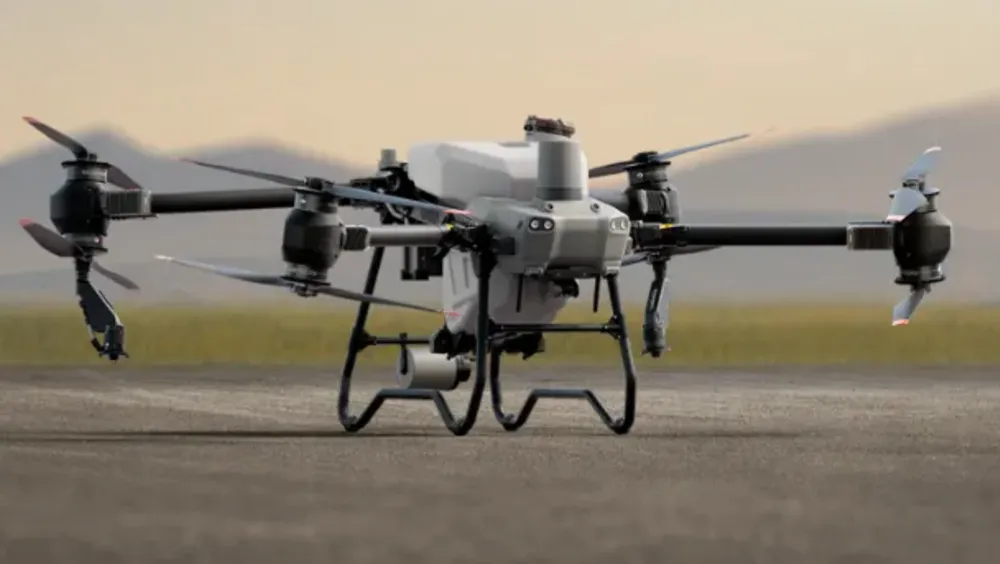

The DJI Agras T50 Spraying, Seeding & Mapping Drone
DJI's Ultimate Agriculture Drone
High Capacity | Awesome Efficiency | Rotary Atomization
- T50 40L (upgradeable to 50L with optional Orchard Kit)
- Coaxial Twin Rotor = Massive Increase in Payload
- Dual Atomization for Even Spraying
- Enhanced Spreading Efficiency for Superior Performance
- Omnidirectional Obstacle Sensing
- Mapping, Spraying and Spreading ALL in One
- Fully Enhance Remote Control for smoother and faster mapping
- Robustly Tested for Ultimate Reliability
- Ultra Fast Charging
- DJI Agras Intelligent Cloud
Want a closer look at the large capacity DJI T50 Sprayer Drone?
Click the "More Info" tab above
More Info

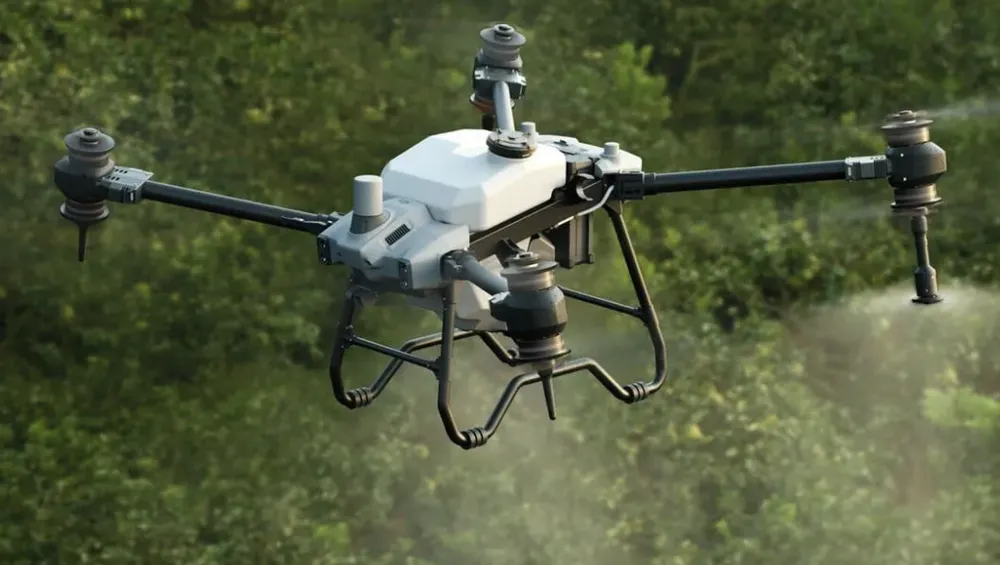

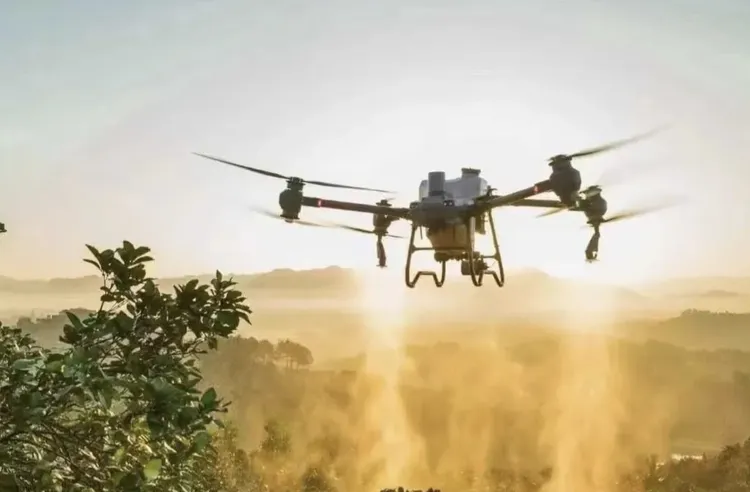

Spray System
- 10.5-gallon liquid tank designed to empty in under 3 minutes
- Estimated 36-foot swath with pattern consistency across the entire swath
- Up to four rotary style nozzles spray through centrifugal force rather than pressure, making
adjusting droplet size as easy as clicking a button - Magnetic drive impeller pump with up to 6.34 gal/min (4 nozzles) and 4.23 gal/min (2
nozzles) - Live level meter, in addition to on-board scales, provide readings of the remaining volume of
liquid in tank signaling time remaining in field
Spreader System
- 19.8-gallon spreader tank designed to hold 110 lbs of granular material
- Get higher spreading efficiency with the spiral channel spinner disk
- A jam-free, high-torque spreading motor
Efficiency & Operations
- Improved terrain following ability with up to 50° in spraying/spreading missions
- 2 sets of binocular vision and 2 omnidirectional
radars helping to achieve maximum efficiency
terrain following and obstacle bypassing - 12 mega-pixel camera with adjustable angles
for a smooth and crisp view - 4 aircraft image transmission antennas
- Complete mapping capability
Specifications
Aircraft
-
Weight
-
39.9 kg (excl. battery)
52 kg (incl. battery)
-
Max Takeoff Weight[1]
-
Max takeoff weight for spraying: 92 kg (at sea level)
Max takeoff weight for spreading: 103 kg (at sea level)
-
Max Diagonal Wheelbase
-
2200 mm
-
Dimensions
-
2800×3085×820 mm (arms and propellers unfolded)
1590×1900×820 mm (arms unfolded and propellers folded)
1115×750×900 mm (arms and propellers folded)
-
Hovering Accuracy Range (with strong GNSS signal)
-
RTK enabled:
Horizontal: ±10 cm, Vertical: ±10 cm
RTK disabled:
Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)
-
RTK/GNSSOperating Frequency
-
RTK:
GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
GNSS:
GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1
-
Max Configurable Flight Radius
-
2000 m
-
Max Wind Resistance
-
6 m/s
Propulsion System - Motors
-
Stator Size
-
100×33 mm
-
KV
-
48 rpm/V
-
Power
-
4000 W/rotor
Propulsion System - Propellers
-
Material
-
Nylon carbon fiber filament
-
Dimension
-
54 in (1371.6 mm)
-
Propeller Rotation Diameter
-
1375 mm
-
Quantity
-
8
Dual Atomizing Spraying System - Spray Tank
-
Material
-
Plastic (HDPE)
-
Volume
-
40 L
-
Operating Payload [1]
-
40 kg[1]
-
Quantity
-
1
Dual Atomizing Spraying System - Sprinklers
-
Model
-
LX8060SZ
-
Quantity
-
2
-
Nozzle Distance
-
1570 mm（Rear Nozzles）
-
Droplet Size
-
50-500 μm
-
Effective Spray Width [2]
-
4-11 m (at a height of 3 m above the crops)
Dual Atomizing Spraying System - Delivery Pumps
-
Type
-
Impreller pump (magnetic drive)
-
Quantity
-
2
-
Single Pump Flow Rate
-
0-12 L/min
-
Max Flow Rate
-
16 L/min (2 sprinklers); 24 L/min (4 sprinklers)
T50 Spreading System
-
Compatible Material Diameter
-
0.5-5 mm dry granules
-
Spread Tank Volume
-
75 L
-
Spread Tank Internal Load [10]
-
50 kg
-
Spread Width
-
8 m
Phased Array Radar System
-
Model
-
RD241608RF (forward phased array radar); RD241608RB (rear phased array radar)
-
Terrain Follow
-
Max slope in mapping-free operation: 50°
Altitude detection range: 1-50 m
Stabilization working range: 1.5-30 m
-
Obstacle Avoidance [4]
-
Obstacle sensing range (multidirectional): 1-50 m
FOV:
Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
Rear phased array radar: vertical 360°, horizontal ±45°
Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
Sensing direction: 360° multidirectional sensing
Binocular Vision System
-
Measurement range
-
0.5-29 m
-
Effective Sensing Speed
-
≤10 m/s
-
FOV
-
Horizontal: 90°, Vertical: 106°
-
Operating Environment
-
Adequate light and discernible surroundings
Remote Controller
-
Model
-
RM700B
-
Operating Frequency [5]
-
2.4000-2.4835 GHz, 5.725-5.850 GHz
-
Max Transmission Distance
-
7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (unobstructed, free of interference, and at an altitude of 2.5 m)
-
Wi-Fi Protocol
-
Wi-Fi 6
-
Wi-Fi Operating Frequency [5]
-
2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz
-
Bluetooth Protocol
-
Bluetooth 5.1
-
Bluetooth Operating Frequency
-
2.4000-2.4835 GHz
-
GNSS
-
GPS Galileo BeiDou
-
Screen
-
7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
-
Operating Temperature
-
-20° to 50° C (-4° to 122° F)
-
Storage Temperature Range
-
Less than one month: -30° to 45° C (-22° to 113° F)
One to three months: -30° to 35° C (-22° to 95° F)
Six months to one year: -30° to 30° C (-22° to 86° F)
-
Charging Temperature
-
5° to 40° C (41° to 104° F)
-
Internal Battery Runtime
-
3 hours 18 minutes
-
External Battery Runtime
-
2 hours 42 minutes
-
Charging Type
-
It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.
-
Charging Time
-
2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)
