Name: DVDO MATRIX-44-MINI 4K HDMI Matrix Switcher 4x4
SKU: 600134

Product Details ＋

Route up to four 4K HDMI sources to four 4K UHD displays with this 4K HDMI Matrix Switcher 4x4 from DVDO. The switcher can support up to 4K UHD resolution video and can automatically descale each output when the unit is connected to a 1080p display. These settings, as well as the four S/PDIF audio outputs, can be adjusted with API commands via IP control.

HDCP 2.2 and various EDID functions are supported by the switcher. Control can be achieved via the included IR remote with receiver cable, RS-232 input, IP via Web UI or Telnet, or using the front-panel buttons. Identifying the sources you are switching between is made easy with the LED indicators on the front panel.

Features

All inputs and outputs support HDMI with HDR formats including HDR 10, HLG, and Dolby Vision up to 4K60 4:4:4
HDCP 2.2 compliant, supports smart EDID, EDID presets, and EDID copy & write
Built-in 4K to 1080p downscaling for each output, works automatically when connected to 1080p display or can be set to on/off with API commands
Each HDMI output has a S/PDIF audio breakup that supports up to 5-ch HBR or 2-ch PCM audio
Four S/PDIF outputs can be muted separately by API commands
Firmware upgrade via micro-USB input and Web UI
Control via RS-232, IR, Web UI, and front-panel buttons

Specifications

Processing

Switching Type

IR Remote, Pushbutton

Input

Video Inputs	4 x HDMI (HDMI 2.0) Female
Input Video Format	HDMI (4:4:4) UHD 4K at 24/25/30/50/60 fps DCI 4K at 24/25/30/50/60 fps 1080p at 24/30/50/59.94/60 fps 720p at 50/59.94/60 fps 576p at 50 fps
Input Audio Format	LPCM (Linear Pulse-Code Modulation)
Embedded Audio Input	HDMI: 2-Channel

Output

Video Outputs	4 x HDMI (HDMI 2.0) Female
Output Video Format	HDMI (4:4:4) UHD 4K at 24/25/30/50/60 fps DCI 4K at 24/25/30/50/60 fps 1080p at 24/30/50/59.94/60 fps 720p at 50/59.94/60 fps 576p at 50 fps
Audio Outputs	4 x 1/4" TRS S/PDIF Female
Output Audio Format	S/PDIF
Embedded Audio Output	HDMI

Connectivity

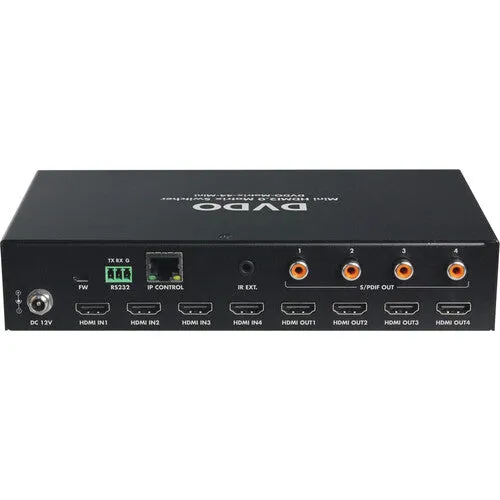

Other I/O	1 x Block 3-Pin RS-232 Input 1 x RJ45 Control, LAN Input 1 x Micro-USB Firmware Input 1 x 1/8" / 3.5 mm IR Input
HDCP Support	, Version 2.2
HDR Compatibility	HDR10, Dolby Vision, Hybrid Log Gamma
DTS Compatibility	DTS-HD Master Audio, DTS:X
Dolby Compatibility	Dolby Atmos, Dolby Digital, Dolby TrueHD

Hardware

Wi-Fi	No
Bluetooth	No

Power

Power I/O	1 x Barrel (12 VDC) Input
Power Consumption	Device: 10.8 W

Environmental

Operating Temperature	32 to 77°F / 0 to 45°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Operating Humidity	10 to 90% (Non-Condensing)

General

Dimensions	8.5 x 4.7 x 1.7" / 215 x 120.2 x 42 mm
Weight	1.19 lb / 0.54 kg

DVDO MATRIX-44-MINI 4K HDMI Matrix Switcher 4x4
