Name: ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30 QMP6988)
SKU: 287698

Product Details ＋

PRODUCT DETAILS

Description

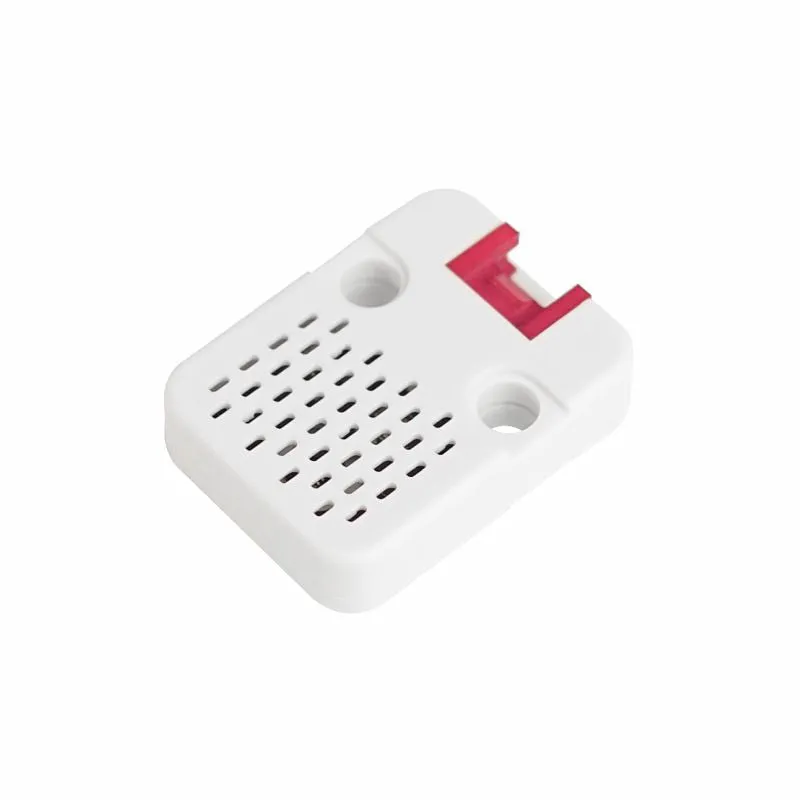

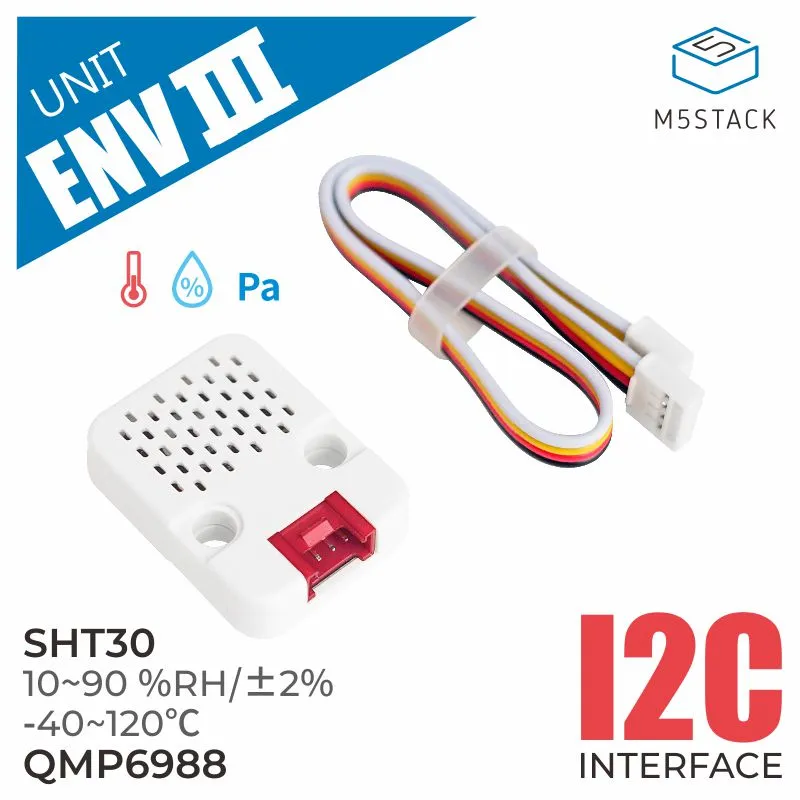

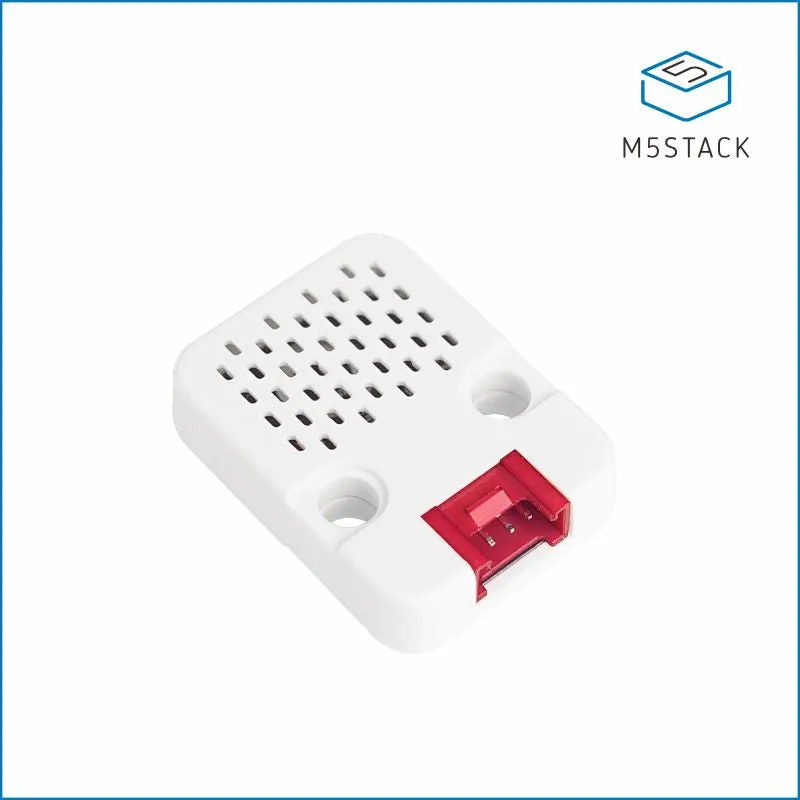

ENV III Unit is an environmental sensor that combines the SHT30 and QMP6988 sensors to measure temperature, humidity, and atmospheric pressure data. The unit is designed to provide accurate and reliable environmental sensing capabilities for various projects and applications.

The SHT30 sensor integrated into ENV III unit is a high-precision and low-power digital temperature and humidity sensor. It utilizes the I2C interface for communication and supports the address 0x44. The SHT30 sensor offers excellent accuracy and stability, making it suitable for temperature and humidity measurements in a wide range of environments.

The QMP6988 sensor, on the other hand, is an absolute air pressure sensor specifically designed for mobile applications. It provides high accuracy and stability in measuring atmospheric pressure. The QMP6988 sensor also utilizes the I2C interface for communication and uses the address 0x70.

ENV III unit can find applications in weather monitoring systems, environmental control systems, IoT projects, and other scenarios where accurate environmental data is essential. With its integrated sensors and I2C interface, it offers a convenient and straightforward solution for environmental sensing.

Product Features

Simple and easy to use
High accuracy
I2C communication interface
HY2.0-4P interface, support platform ,
2x LEGO compatible holes

Include

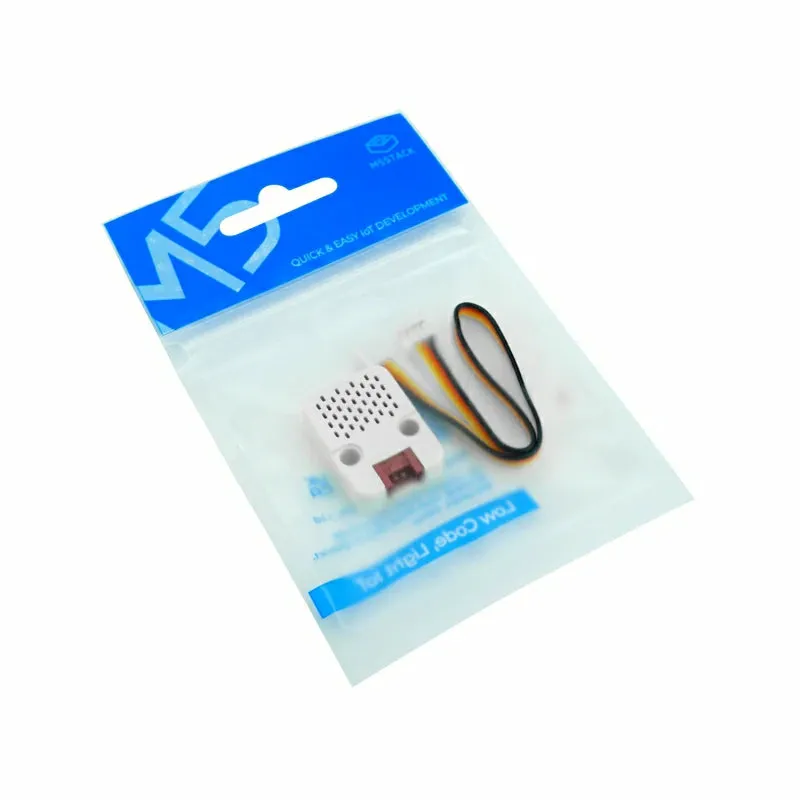

1x ENV-III Unit
1x HY2.0-4P Cables

Applications

Weather station
Storage barn environment monitoring

Specification

Resources	Parameter
Maximum temperature measurement range	-40 ~ 120 ℃
Highest measurement accuracy	0 ~ 60 ℃/±0.2℃
Humidity measurement range/error	10 ~ 90 %RH / ±2%
Maximum measured value of air pressure/resolution/error	300 ~ 1100hPa / 0.06Pa / ±3.9Pa
Communication protocol	I2C: SHT30(0x44), QMP6988(0x70)
Working temperature	32°F to 104°F (0°C to 40°C )
Net weight	5g
Gross weight	17g

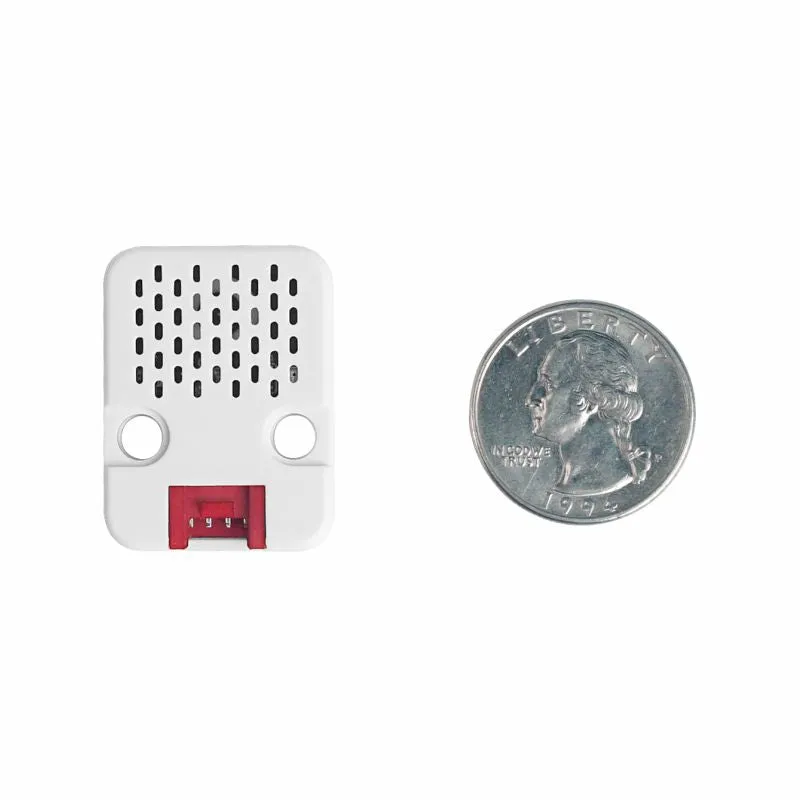

Product Size	24.232.28.1mm
Package Size	675312mm
Case Material	Plastic ( PC )
