PRODUCT DETAILS

Description

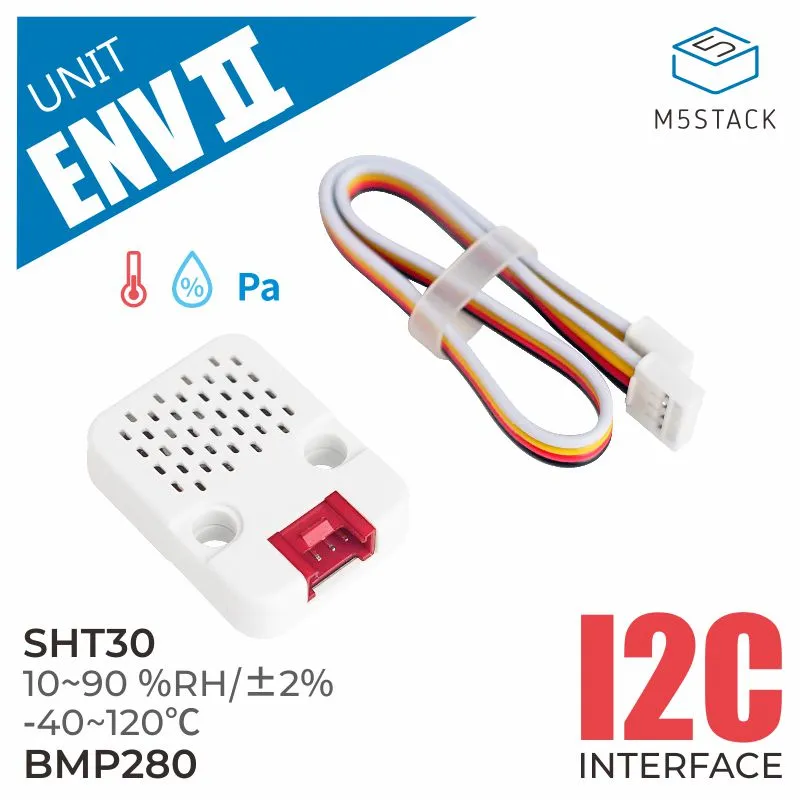

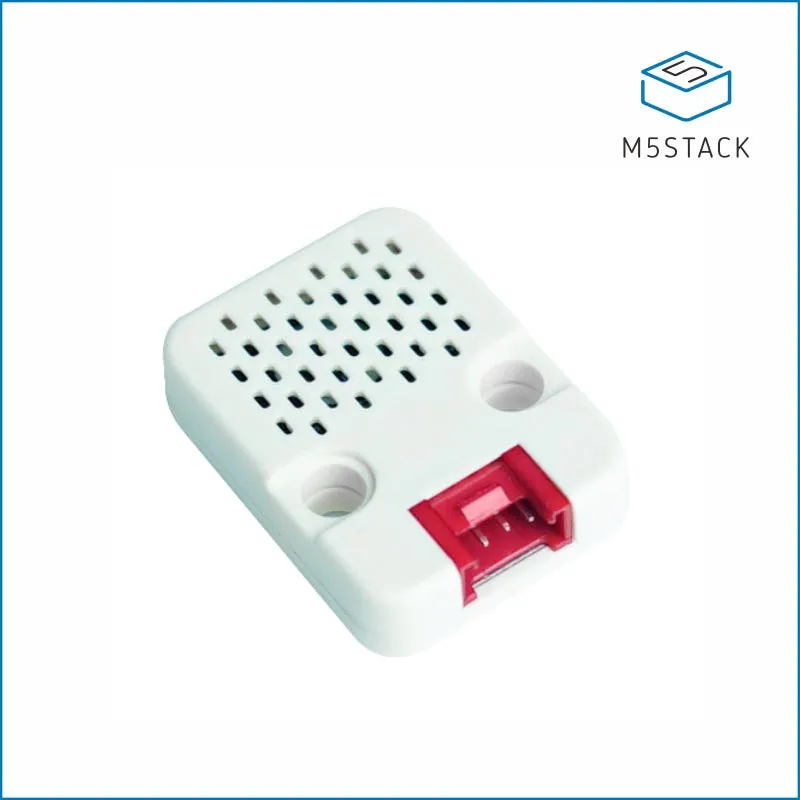

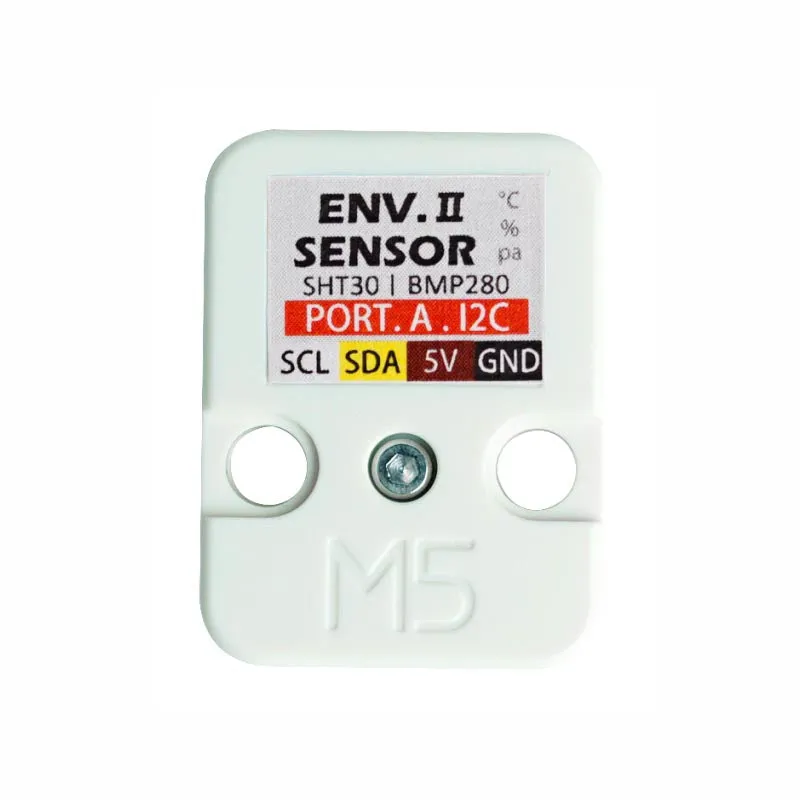

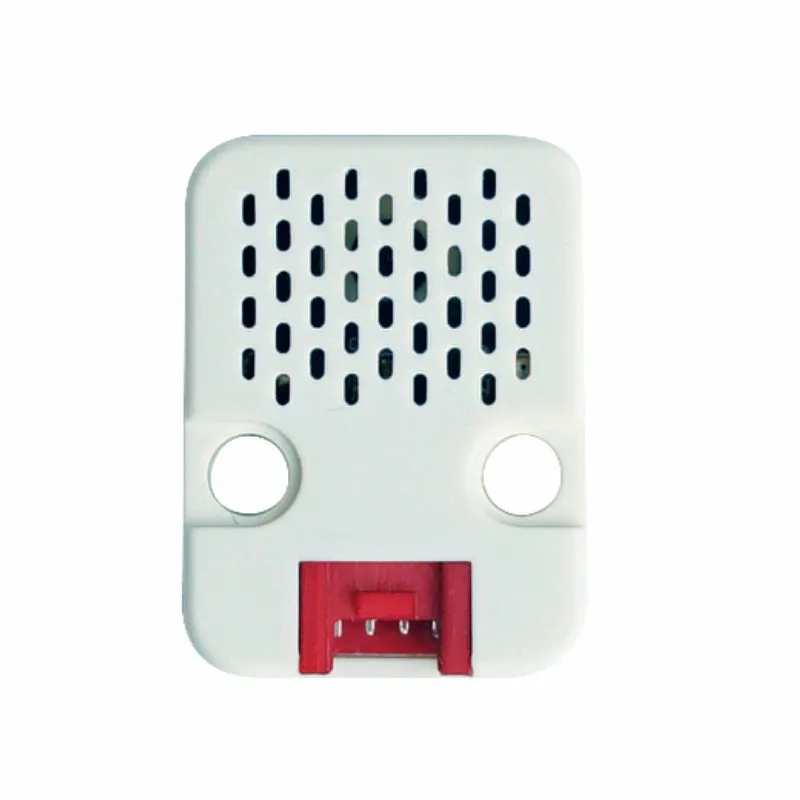

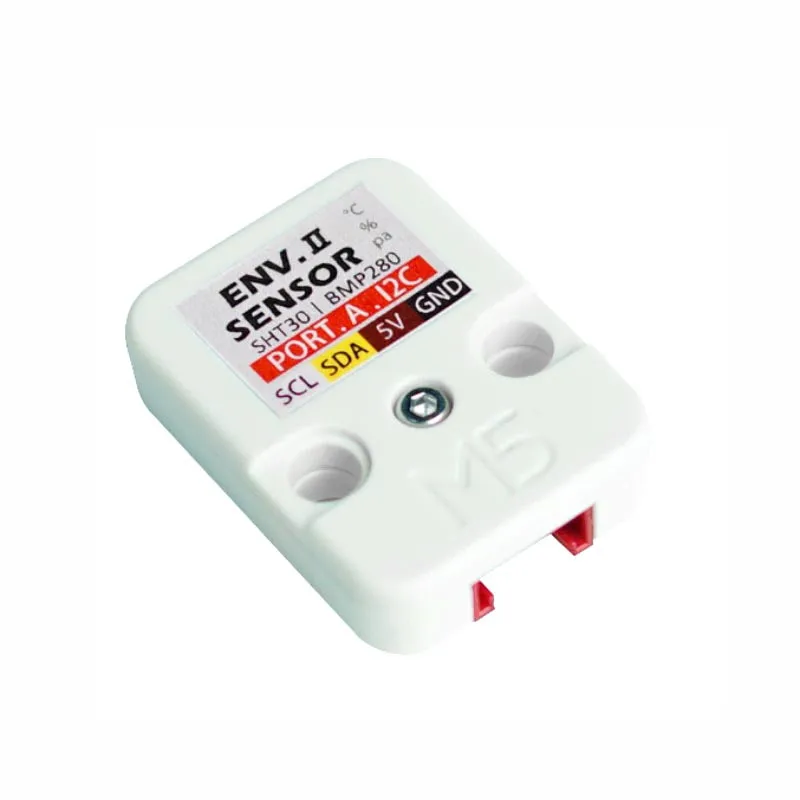

ENV II is an environmental sensor which can sense temperature, humidity and atmospheric pressure. It integrates the SHT30 and BMP280 sensors and is programmed over the I2C protocol(SHT30:0x44, BMP280:0x76).

SHT30 is a digital temperature and humidity sensor with high precision and low power consumption.

BMP280 is an absolute barometric pressure sensor which is especially designed for mobile applications. It offers the highest flexibility to optimize the device regarding power consumption, resolution and filter performance.

Product Features

  • High-precision
  • Support I2C
  • GROVE interface, support and
  • Two Lego installation holes

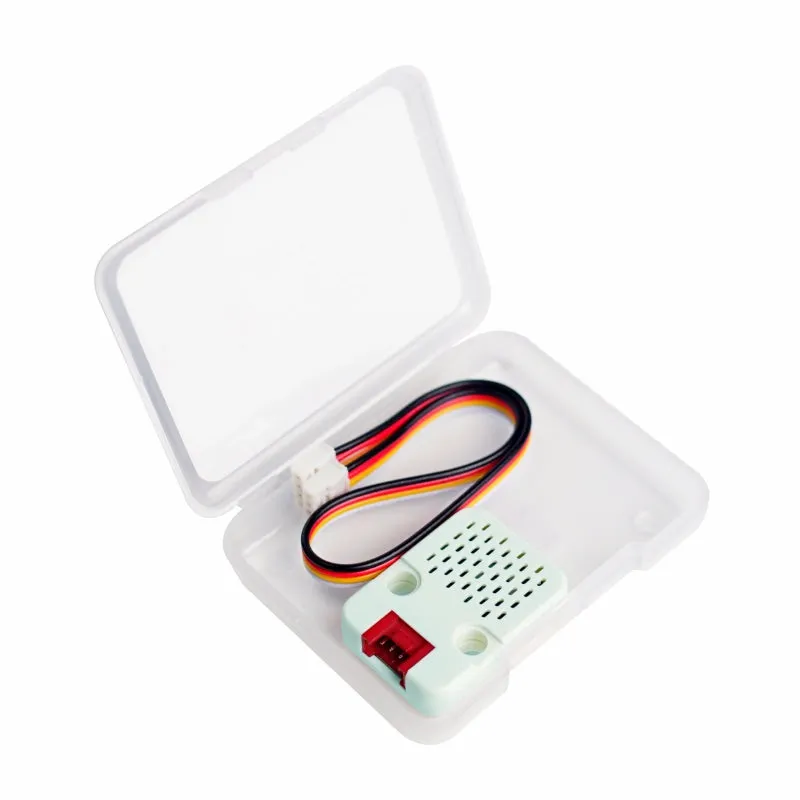

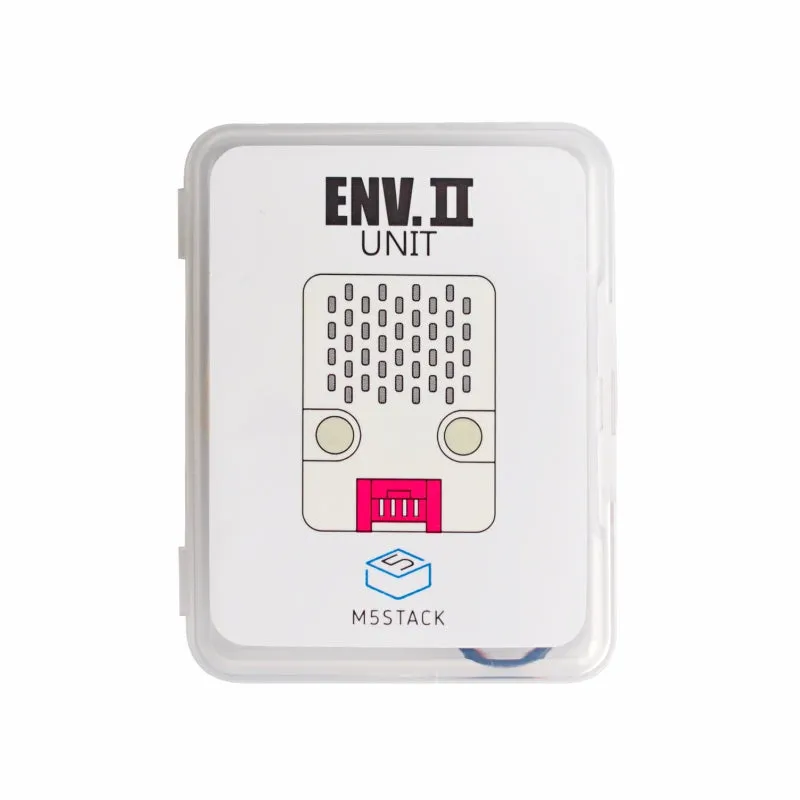

Includes

  • 1x ENV II Unit
  • 1x Grove Cable

Specification

SpecificationParameter
Max temperature measuring range-40 ~ 120 ℃
Typical temperature tolerance0 ~ 60 ℃/±0.2℃
Humidity measuring range10 ~ 90 %RH / ±2%
Air pressure measuring range300 ~ 1100hPa / ±1hPa
Communication protocolI2C:SHT30(0x44),BMP280(0x76)
Operating temperature range0°C to 60°C
Net weight5g
Gross weight17g
Product Size24.2*32.2*8.1mm
Package Size67*53*12mm
Case materialPlastic ( PC )

LEARN AND DOCUMENTS

  • [EOL] ENV II Unit with Temperature Humidity Environment Sensor (SHT30 BMP280)

    • DefaultTitle

    $ 58.52

    $ 76.08
