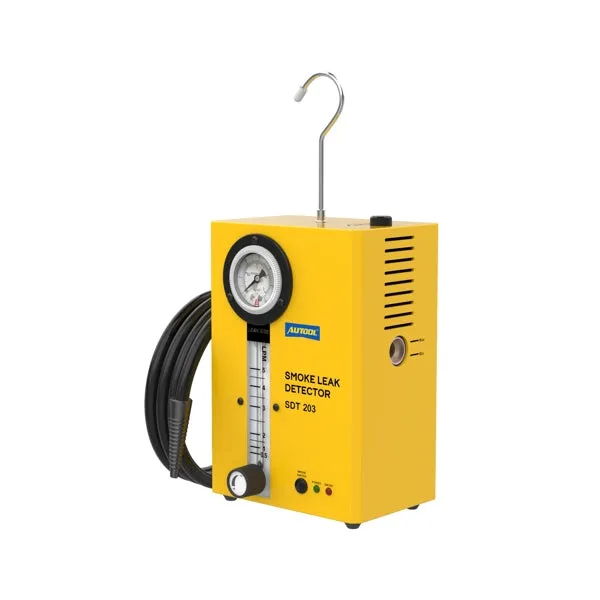

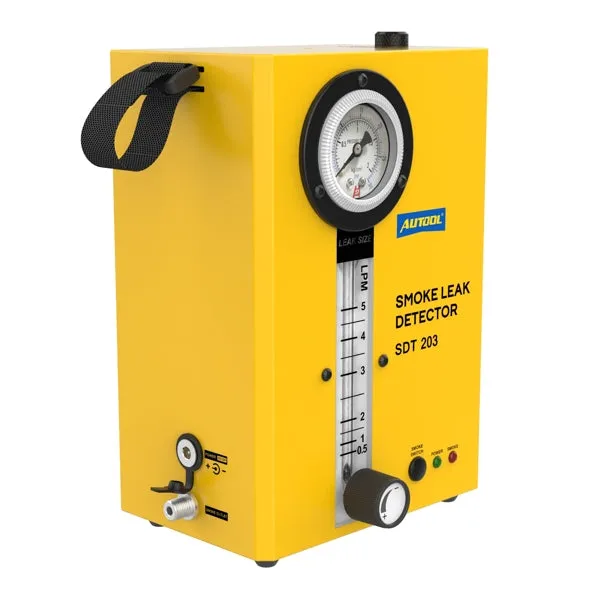

Description:

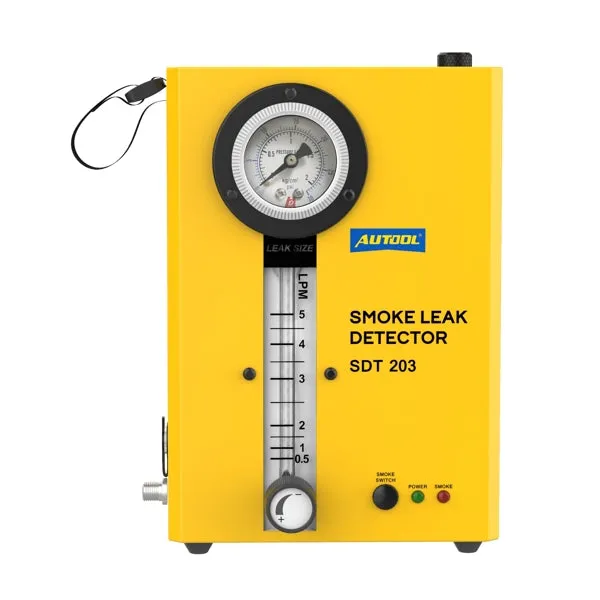

The AUTOOL SDT203 Car Smoke Leak Detector is a professional tool designed to efficiently detect pipe system leaks in various vehicles, including cars, motorcycles, ATVs, and boats. This versatile device offers precise and quick identification of leaks, making it an essential tool for automotive maintenance and repair.

In-Depth Product Breakdown:

Key Features:

Wide Range of Applications:

• Versatile application: Suitable for detecting pipe system leaks in cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks, and speedboats.
• Universal compatibility: Compatible with all car models.

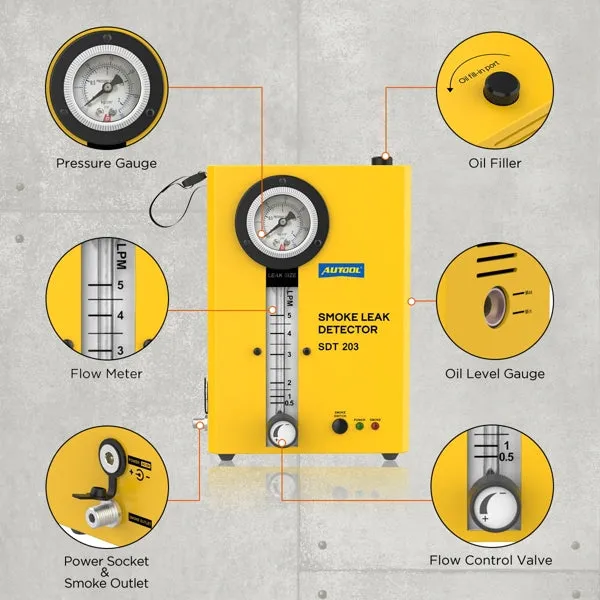

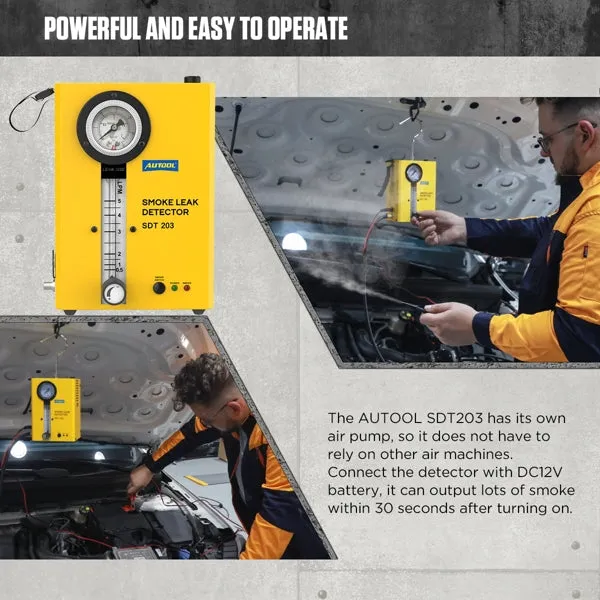

Powerful and Easy to Operate:

• Built-in Air Pump: Operates independently, eliminating the need for additional machines.
• Pressure Gauge: Provides precise scales for accurate measurements.
• Quick Smoke Output: Generates thick smoke within 30 seconds of activation.

Advanced Technology:

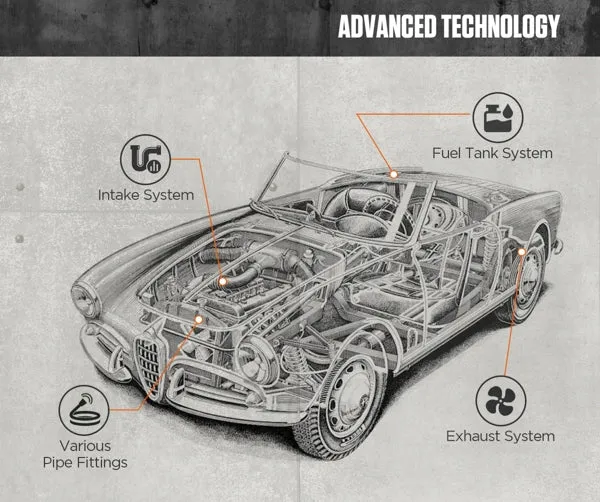

• EVAP System Compatibility: Specifically designed to work on the EVAP system for enhanced efficiency.
• Dual Flow Meters: Ensures accurate data display.
• Independent Control Modes: Offers separate control for Air and Smoke modes.
• Overheat & Anti-frost Protection:
• • Intelligent Protection: Automatically shuts off power if the working temperature exceeds the limit (e.g., over 75°C), ensuring safety for both the operator and the device.
• 3-Year Warranty: Built for durability, this product comes with a 3-year warranty that covers damage caused by non-human factors. Free replacement parts are included, with an estimated delivery time of 8-12 weeks.

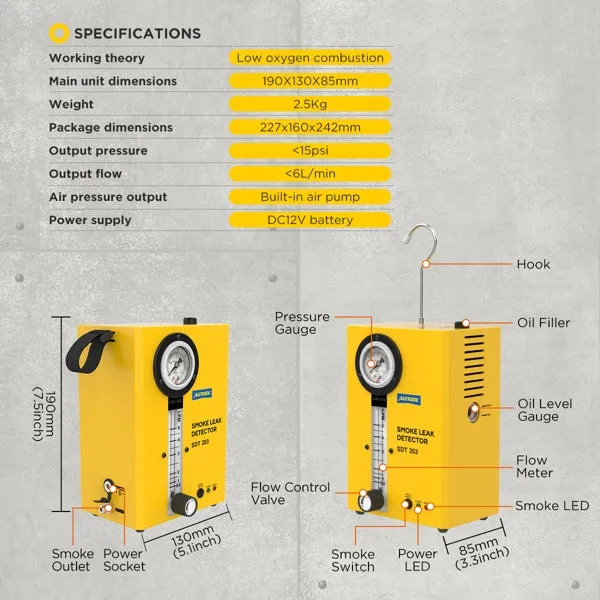

Technical Information:

• Power Supply: DC12V±2
• Output Pressure: 15psi
• Output Smoke Value: 1-6L/min
• Ambient Temperature: -10℃ ~ 40℃
• Relative Humidity: ＜85%
• Test Oil: Mineral oil or baby oil
• Air Pressure Output: Built-in air pump
• Dual modes: Smoke mode & air mode
• Multi Protections: Oil outlet, over-heat, and over-load protection

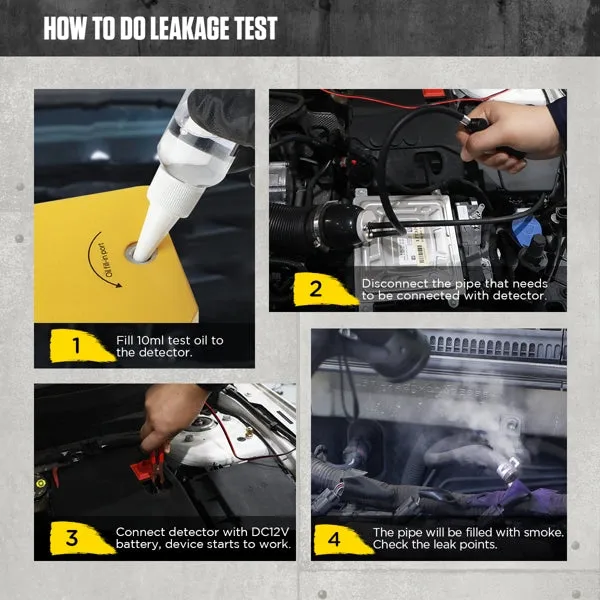

Operational Steps:

Air Intake System Test:

1. Open the air filter cover and take out the air filter.
2. Inflate the rubber bladder to match the diameter of the air inlet.

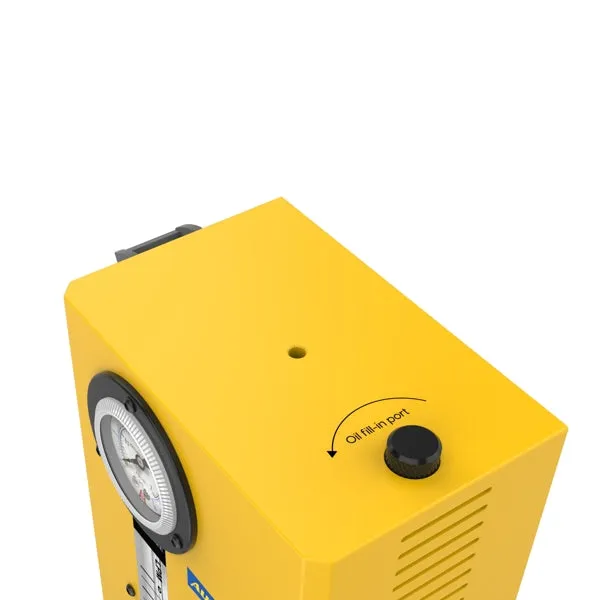

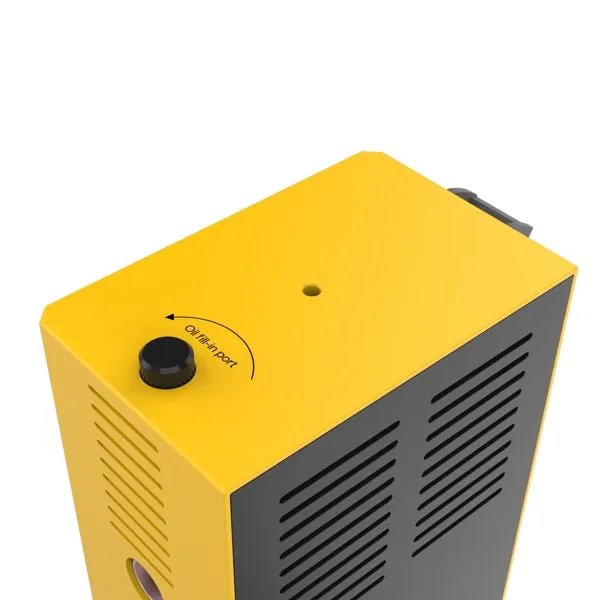

3. Add 10ml of test oil into the oil filler cap and tighten it.
4. Turn on the power switch and activate the air mode and smoke mode buttons.
5. Block the smoke nozzle and monitor the pressure gauge.
6. Connect the smoke nozzle to the inflatable bladder when the pressure reaches 0.8kg/cm2.
7. Identify any smoke coming out from the leak point of the air intake system.

EVAP System Test:

1. Locate the carbon canister on the car and disconnect the fuel inlet/outlet tubing.
2. Connect the special adapter for the EVAP system to the tubing.
3. Add 10ml of test oil into the oil filler cap and tighten it.
4. Turn on the power switch and activate the air mode and smoke mode buttons.
5. Block the smoke nozzle and monitor the pressure gauge.
6. Connect the smoke nozzle to the special adapter for the EVAP system when the pressure reaches 0.8kg/cm2.
7. Identify any smoke coming out from the leak point of the EVAP system.
   Attention: Ensure there are no open flames during the EVAP system test.
