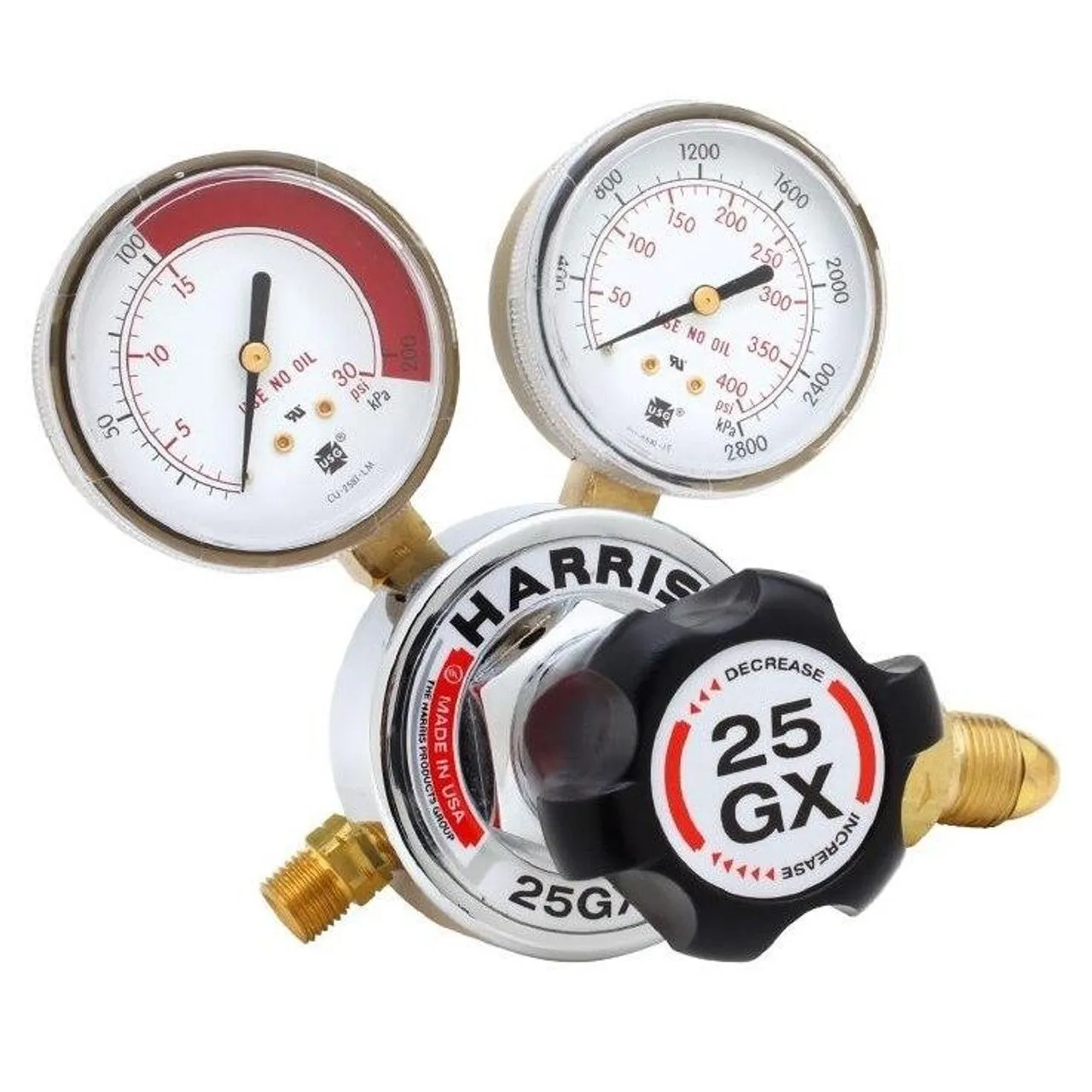

Harris 25GX-15-510 Acetylene Regulator

Model 25GX single-stage regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants.

Features

• High end features for economical price
• Workhorse of Harris industrial regulator line
• Ergonomic ABS plastic knob for easy grip and precise adjustment
• Brass body and chrome-plated zinc bonnet for longer service life
• Neoprene diaphragm for better pressure control
• 2.5" Steel dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• UL® listed /CGA E-4

• Featured In: Steelworker® Classic & V-Series® kits

• Weight: 2.9 lbs./1.32 kg

• Part Number 3000380 / 3000682

25GX-15-510 Specifications

• Max Inlet Pressure: 500 psi.
• Outlet Pressure: 0-15 psi
• Inlet Connection: CGA 510
• Outlet Connection: 9⁄16" - 18 LH
