The TBERD4000 includes the following options:

• T-BERD 4000 handheld for Metro and Access 1310/1550nm OTDR testing (copper ready) with CW light source,


• power meter and VFL functions. SC/UPC interchangeable connector


• SLM: Smart-Link Mapper with FTTH module for T-Berd 4000


• Carry bag


• 1 year warranty

Description

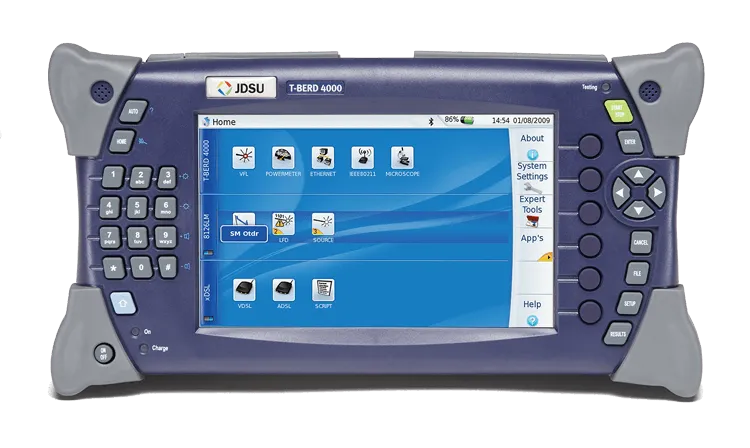

The T-BERD® 4000 is a small, compact and handheld test platform designed for all phases of the network lifecycle, from the installation to the maintenance of Access/FTTx networks and triple-play services. Modular in design, the T-BERD® 4000 offers field service technicians the highest performance and superior levels of scalability and upgradeability.

• Large 7-inch indoor/outdoor color display


• Cost-effective, compact and handheld platform


• Multi-layer network solution from physical to services layer


• Highly scalable with up to 2 field-replaceable modules


• Connection checker with VFL, power meter and video inspection scope options


• Flexible connectivity for fast data transfer: 2xUSB 2.0, up to 1 Gb/s Ethernet

Applications

• Fiber test applications include OTDR, FiberComplete™ Automatic IL/ORL, CWDM Analyzer, PON/FTTH selective power meter , Connector Inspection with IEC Pass/Fail Analysis as well as Visual Fault Locator, Broadband Power Meter and CW light source


• Copper test applications include volt/ohm meter, time domain reflectometer (TDR), resistive fault locator, and wideband tones/spectal analysis to 30 MHz


• Triple-play service testing/IPTV and VoIP measurements from DSL access interfaces or standard Ethernet port


• VDSL and ADSL testing using Infineon Technologies chipset and licensed option for Dr. DSL® diagnostic solutions from Aware, Inc.


• Enterprise IT network testing: Basic troubleshooting functionality combined with the advanced capability needed to turn up and maintain modern networks

Key Features

• Lightweight platform: only 1.4kg/3 lbs


• Intuitive graphical user interface with touchscreen option


• Extended battery life using smart Lithium ion cell


• Scripting capability for automation, simplification and automatic data reporting


• Easy Internet access via installed web browser


• Remote control access allowing remote assistance from any expert user


• Integration of basic applications such as HTML and PDF reader
