Overview

A BenchVue software license (BV0006B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences.

---

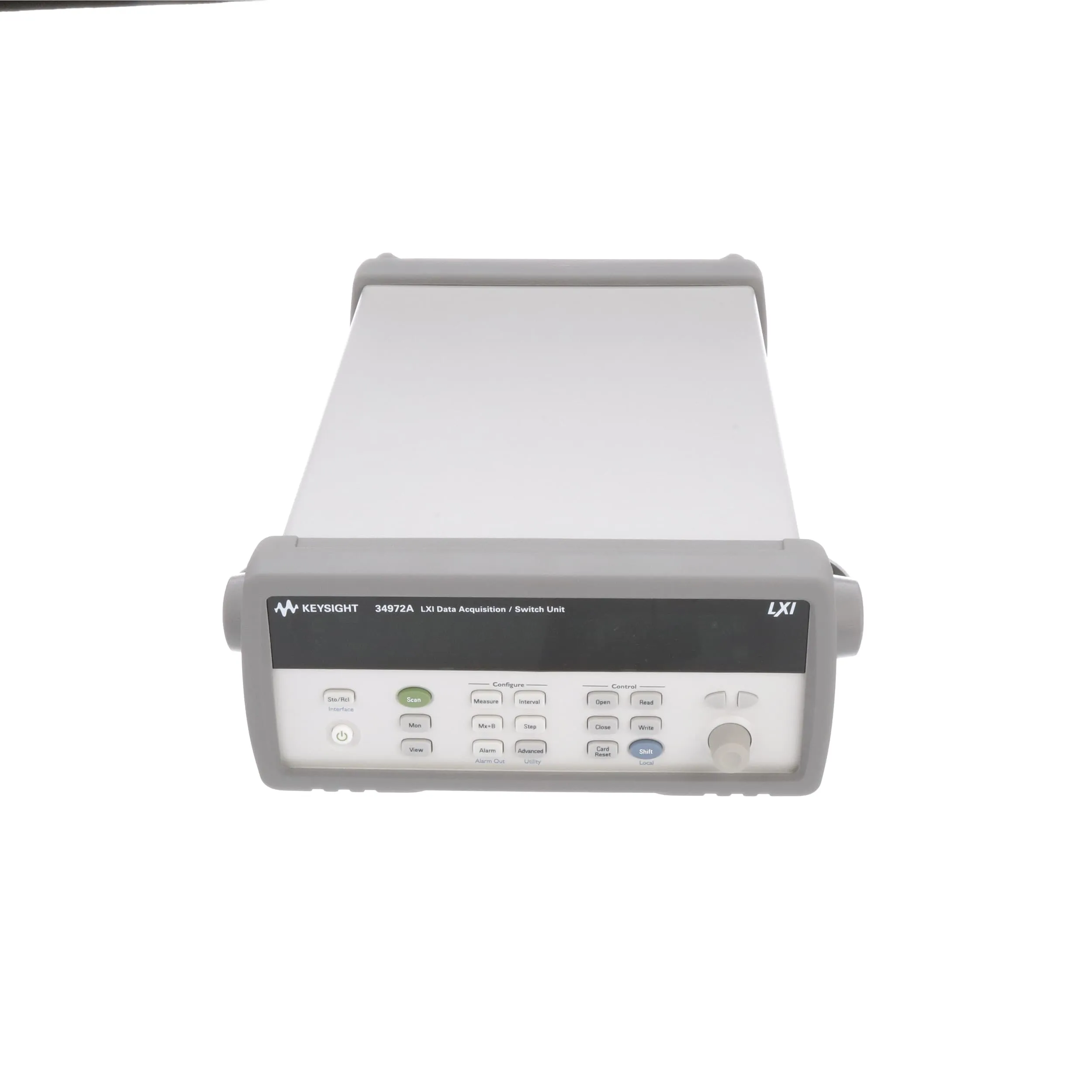

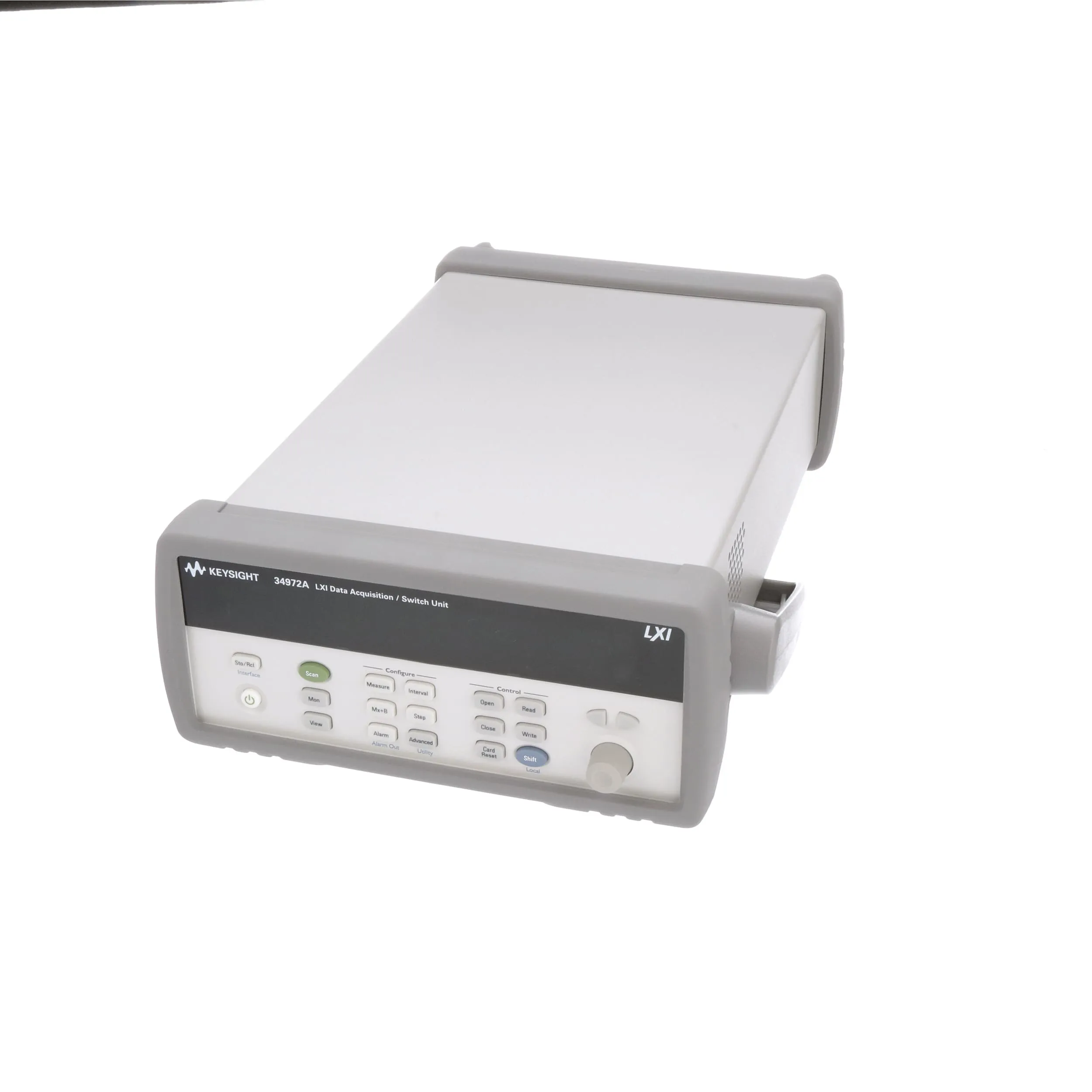

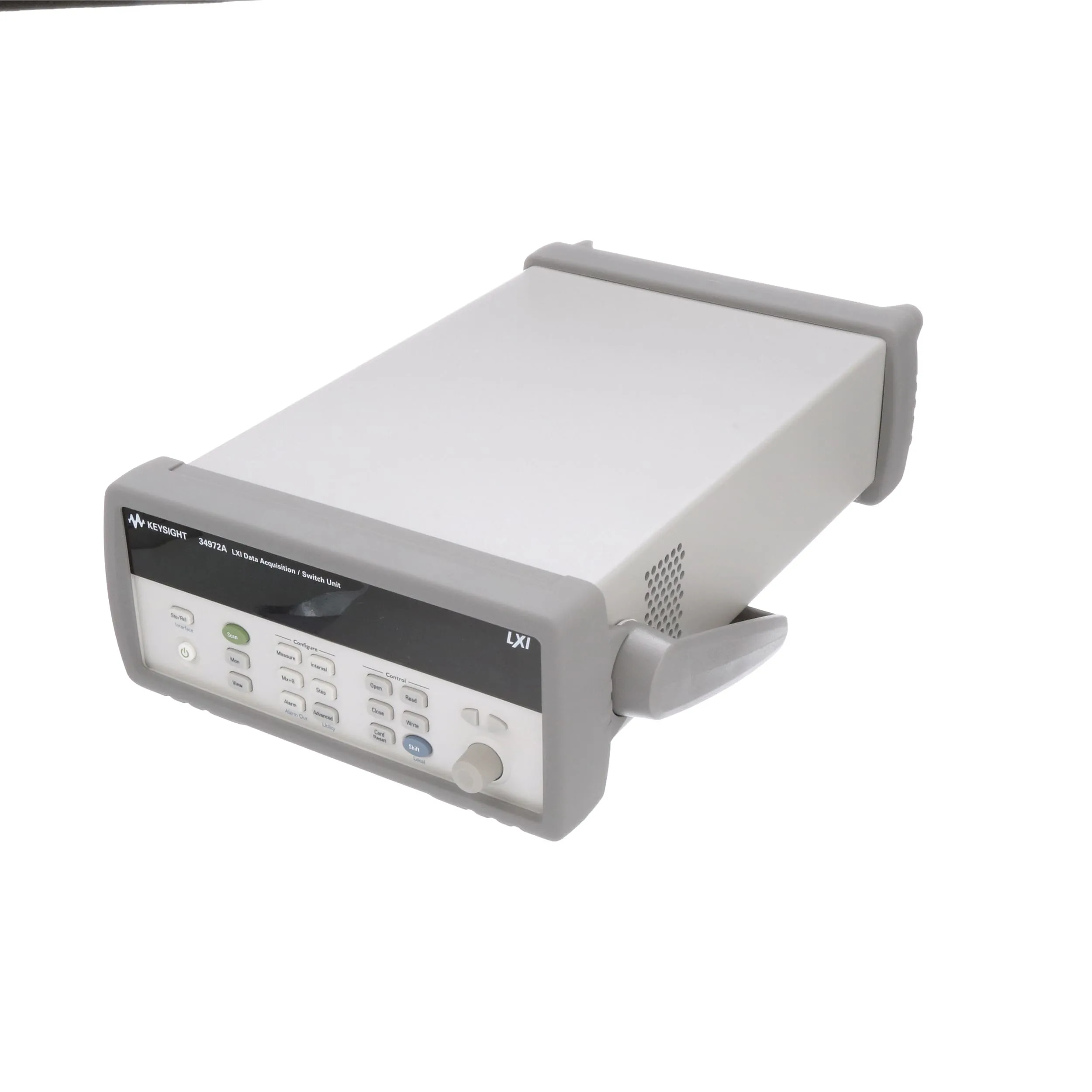

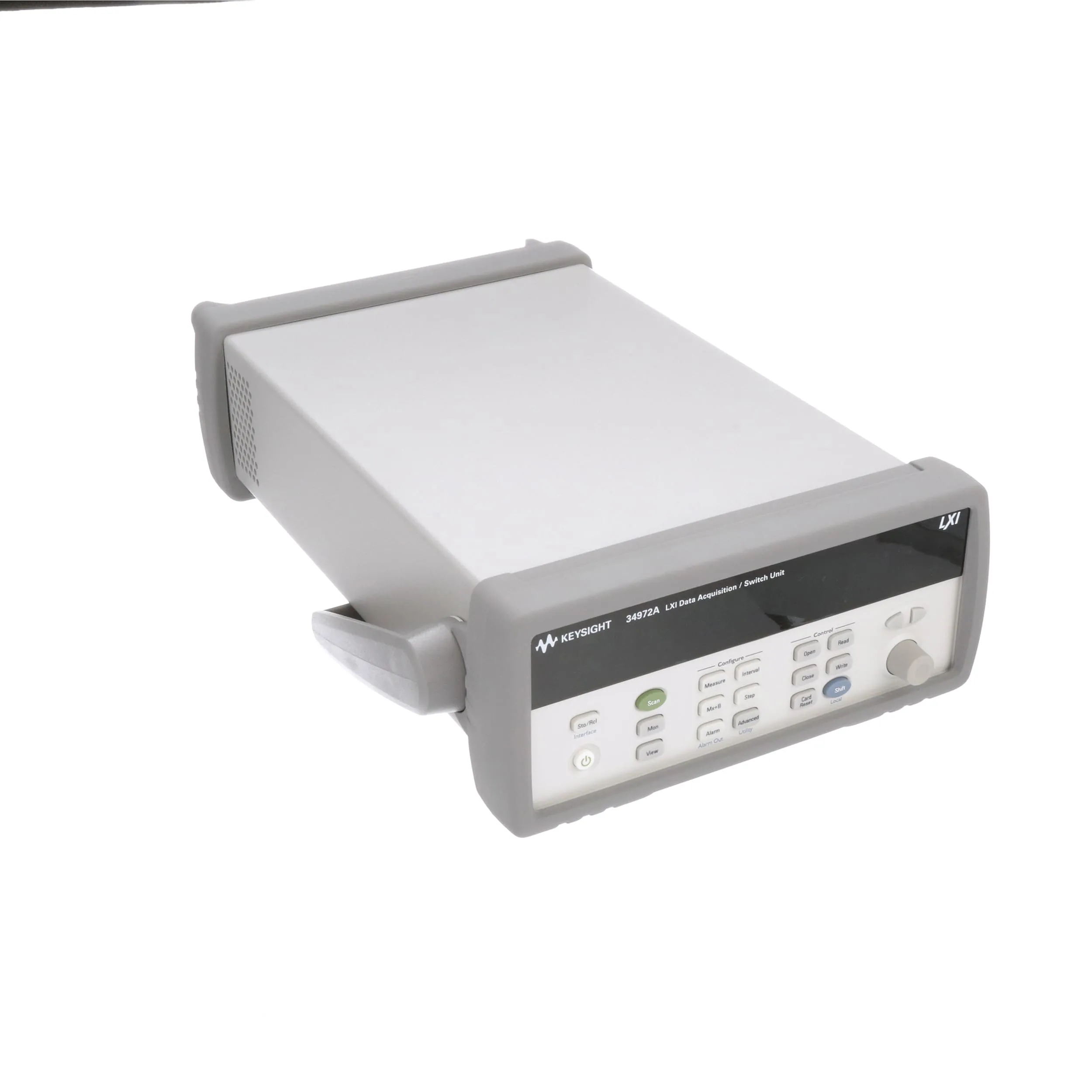

Keysight 34970A/34972A Series — 34970A Data Acquisition / Data Logger Switch Unit:

The 34970A Data Acquisition / Data Logger Switch Unit consists of a three-slot mainframe with a built-in 6 1/2 digit digital multimeter. Each channel can be configured independently to measure one of 11 different functions without the added cost or hassles of signal-conditioning accessories. Choose from eight optional plug-in modules to create a compact data logger, full-featured data acquisition system or low-cost switching unit. On-module screw-terminal connections eliminate the need for terminal blocks and a unique relay maintenance feature counts every closure on every switch for easy, predictable relay maintenance. Our most popular module 34901A features a built-in thermocouple reference and 20 two-wire channels. BenchVue DAQ app is available for no cost for use with the 34970A and 34972A. BenchVue gives you an intuitive interface for test configuration and real-time data display and analysis. Setup and make measurements quickly, export data or use the built-in graphs to log your results. BenchVue Software also supports many other instruments giving you a single interface.

Features:

Measures and converts 11 different input signals: temperature with thermocouples, RTDs and thermistors; dc/ac volts; 2- and 4-wire resistance; frequency and period; DC/AC current
– IO options for easy connectivity to your PC:
– 34970A: GPIB, RS-232

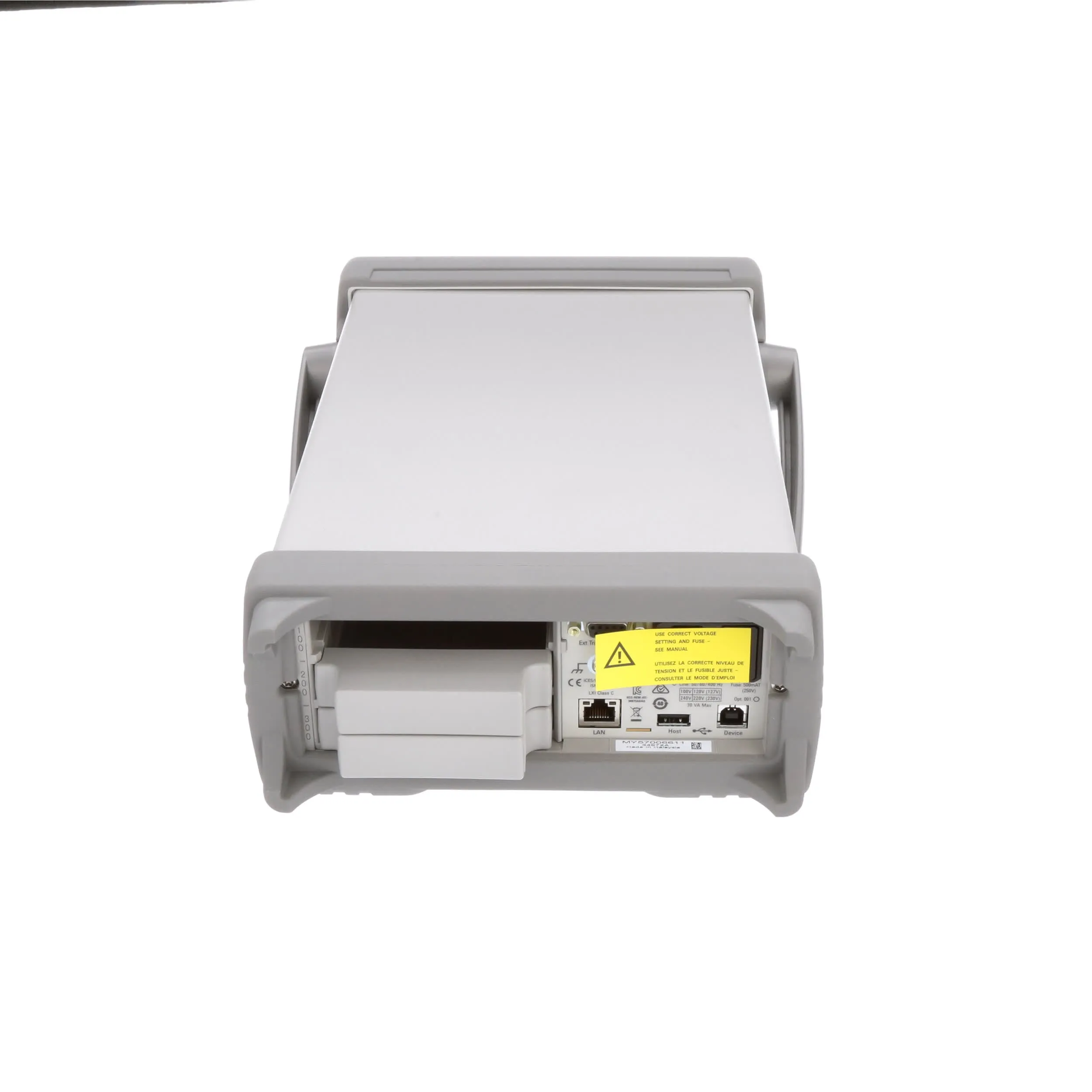

– 34972A: LAN, USB
– Graphical Web interface for point and click monitor and control (34972A)
– USB flash drive support to copy/log data in standalone applications (34972A)
– Includes BenchLink Data Logger Software to configure and control tests, display results and collect data for further analysis

3-slot mainframe with built-in GPIB and RS232 interfaces

6 1/2-digit (22-bit) internal DMM, scanning up to 250 channels per second

8 switch and control plug-in modules to choose from

Built-in signal conditioning measures thermocouples, RTDs and thermistors, ac/dc volts and current; resistance; frequency and period

50k readings of non-volatile memory holds data when power is removed

Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs

BenchVue DAQ Control and Analysis app enables you to create tests without programming

Free BenchLink data logger software to create tests without programming
