Key Features
- Attitude Heading Reference System with 11 precision sensors
- True heading, magnetic heading, deviation, variation, roll, pitch, air pressure, and temperature

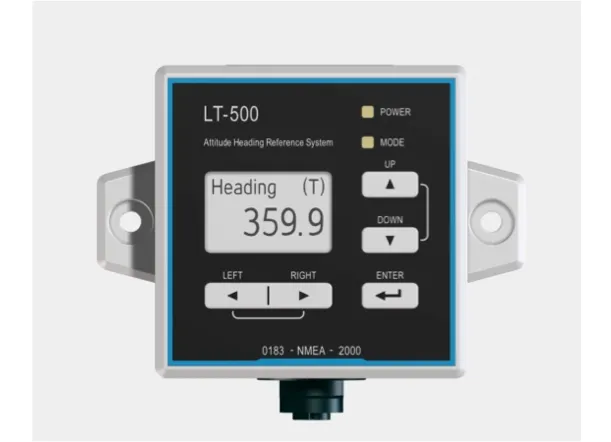

- Display and control buttons for installation and service
- Simultaneously NMEA 0183 and NMEA 2000 data
- Configurable NMEA 0183 sentences (enable/disable, talker ID, output rate)
- Easy configurable NMEA 2000 termination resistor (open or terminated)
- Easy configurable NMEA 0183 data rate (4800 or 38400 baud)
- Mount in any orientation without compromising the high performance
- Each unit is factory calibrated and functional tested over temperature prior to shipment
- Worldwide maritime certification

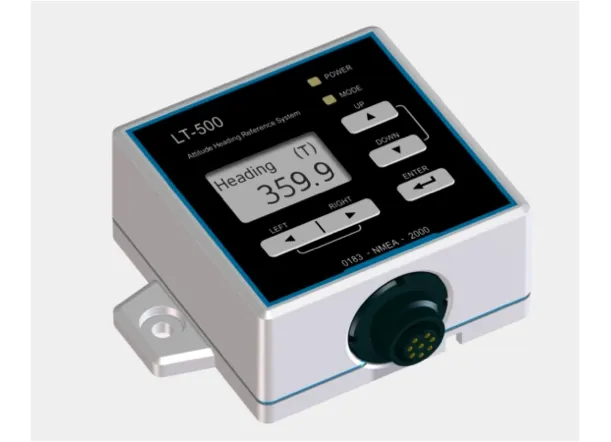

Introduction
The LT-500 Attitude Heading Reference System (AHRS) unit is a maritime navigation product from Lars Thrane A/S. The LT-500 AHRS unit is designed for the leisure as well as the professional maritime markets. The LT-500 unit meets all standards and certification requirements needed for worldwide maritime navigation equipment.
Performance
The LT-500 AHRS unit is a small, compact, and very advanced unit with 11 precision sensors. With the use of sensor-fusion and Kalman filtering, the LT-500 AHRS unit outputs: true heading1, roll, pitch, air pressure, and temperature real-time, with high precision and resolution. The LT-500 AHRS unit includes advanced technologies such as:
- Kalman filtering
- Calculation of magnetic variation based on the World Magnetic Model (WMM)
- Compensation of soft and hard iron (deviation)
- Built-in magnetometer calibration algorithm
The LT-500 AHRS unit is designed and built for the demanding and rough environment at sea and with an operational temperature range from -25⁰C to 55⁰C (-13⁰F to 131⁰F).
Installation & Navigation
The LT-500 AHRS unit is easy to mount and supports NMEA 0183, NMEA 2000, and power on a single cable. Without compromising the high performance, the LT-500 AHRS unit may be installed in any position. The LT-500 AHRS units has a built-in user interface (display and control buttons) for installation and service. Navigation output from the LT-500 AHRS unit is available in the user interface. The LT-500 AHRS unit supports automatic levelling (pitch and roll), which can be used during the installation. The built-in magnetometer calibration algorithm will compensate for deviation, and the LT-500 AHRS unit will output reliable navigation data. The external PC installation and service software is available for optional configuration and maintenance of the LT-500 AHRS unit.
More than 40 years of experience have been put into the design and construction of the advanced LT-500 AHRS unit, with an exceptional performance and specification level
Specifications
- Certification & standards: CE, IEC 60945, IEC 60950, FCC, IC, RCM, RoHS, NMEA 0183, NMEA 2000

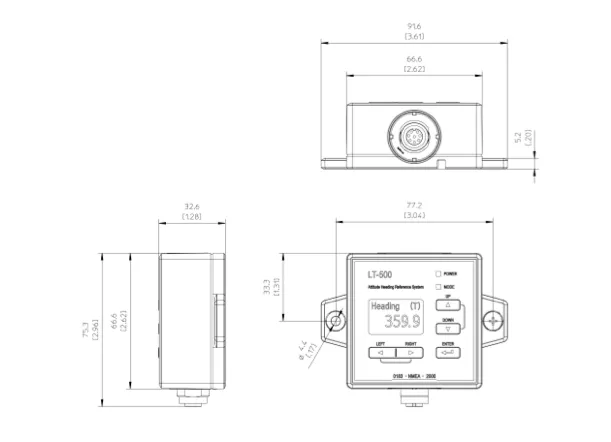

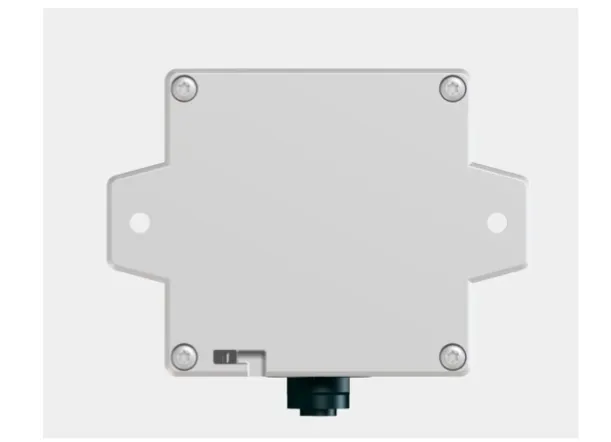

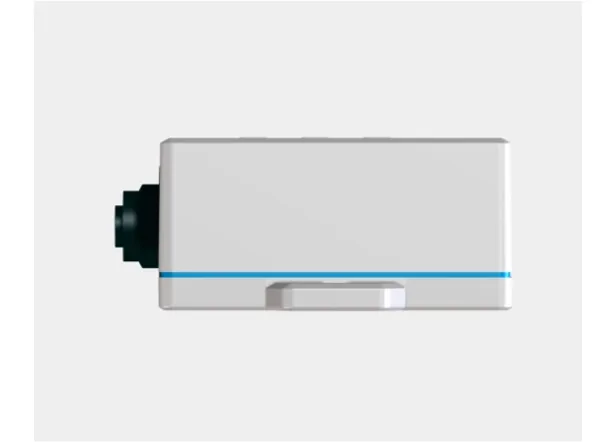

- Dimensions: 91.6 x 75.3 x 32.7 mm (3.61 x 2.96 x 1.29 in)
- Weight: 104 g (0.23 lbs)
- Temperature (ambient), operational: -25°C to 55°C (-13°F to 131°F)
- Temperature (ambient), storage: -30°C to 80°C (-22°F to 176°F)
- Waterproof: IP42 / Humidity: 95% non-condensing @ 40°C

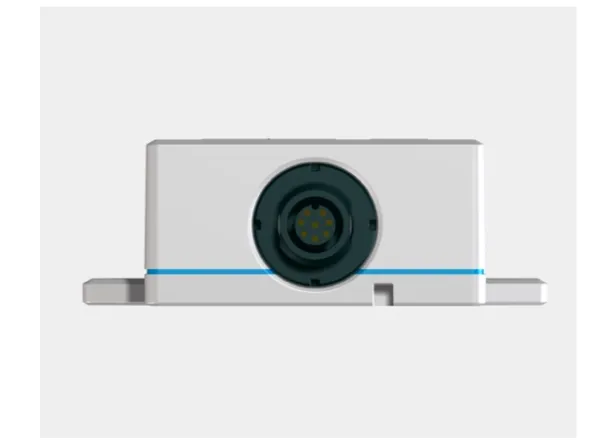

- Communication Interface: 8-pin female connector for NMEA 0183, NMEA 2000 and power
- Input power: 9-40 VDC
- Power consumption: < 1W
- Load Equivalent Number (LEN): 2
- Compass safe distance: 0.3 m (1 ft)
- LT-500 AHRS
- 10m Cable Multi 8-pin Simple-Cut (M)
- Screw-in Conn. NMEA 2000 Micro-C (M)
- Quick Installation Guide
- Safety Instructions Sheet
- Unit Test Sheet
