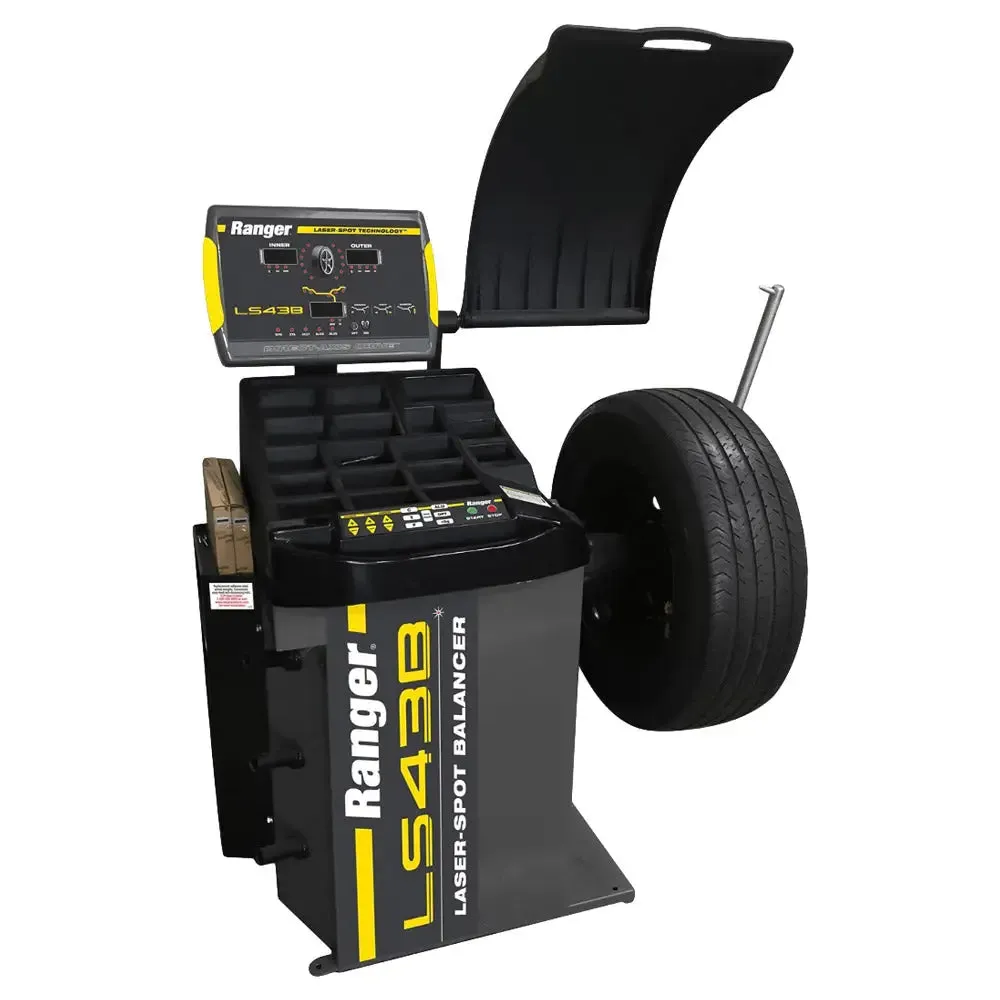

A Laser Wheel Balancer For Supreme Speed And Amazing Accuracy

The Ranger LS43B laser wheel balancer handles wheels up to 43 inches in diameter. The average cycle time is just 7 seconds, making it one of the fastest floor-to-floor balancing machines ever built.

Laser-Spot Technology: Laser balancers are increasingly being used in high-volume shops because lasers eliminate second-guessing and speed up weight placements. This also means the balance check you perform after placing inboard and outboard weights will almost always be clean. The fewer weights you use, the better your bottom line. Plus, customers will enjoy long-lasting balances that make their rides feel like new again.

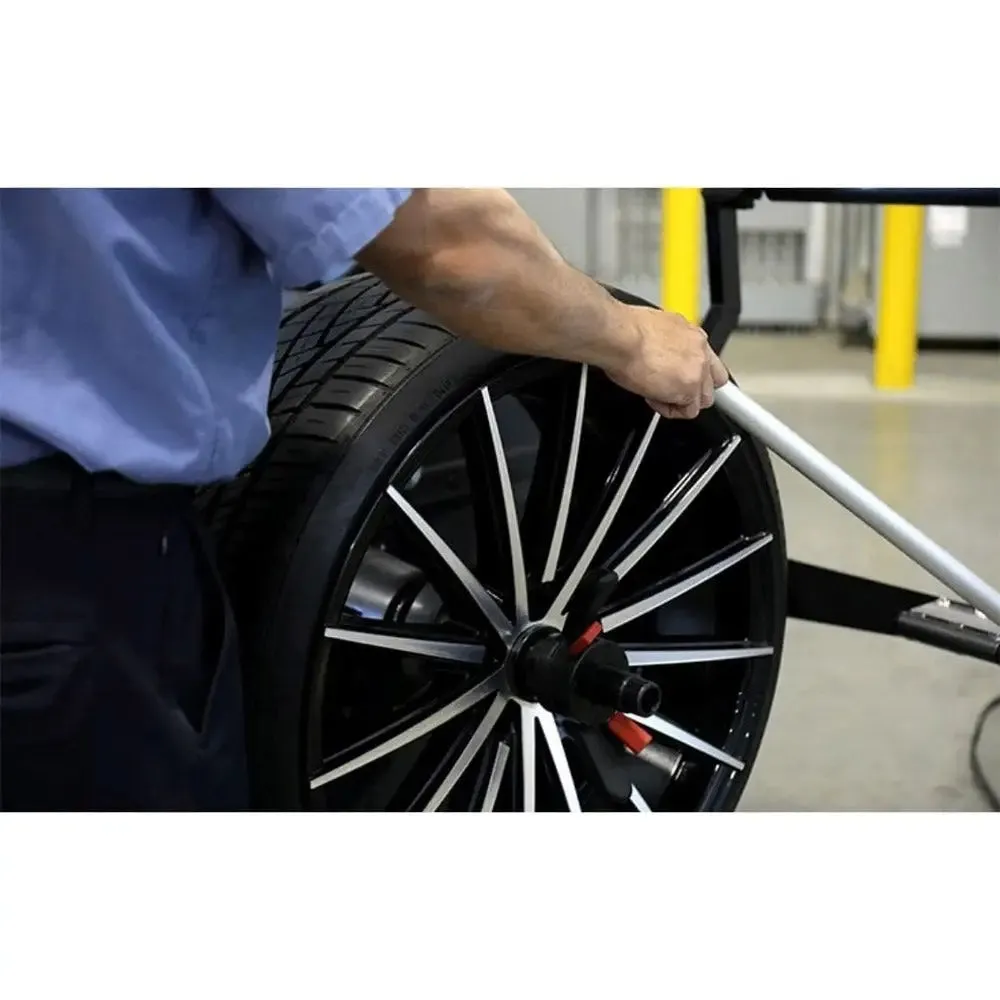

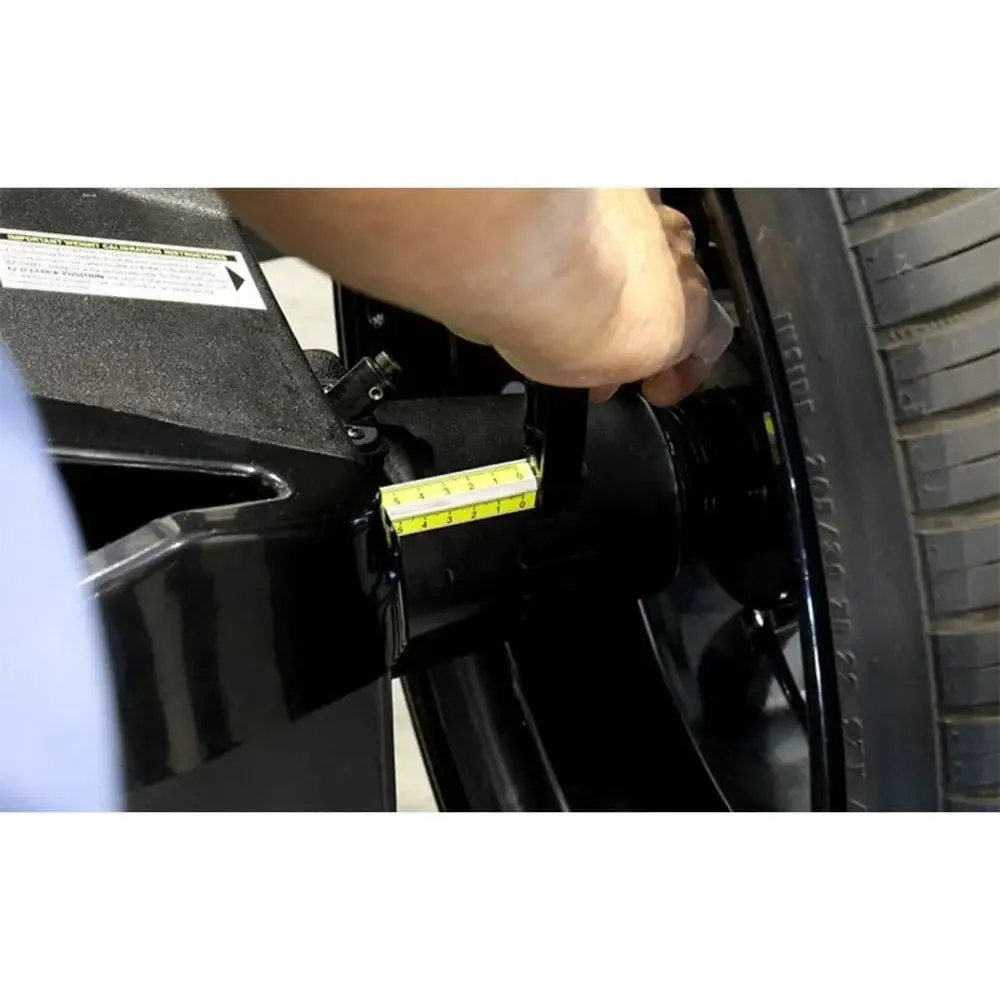

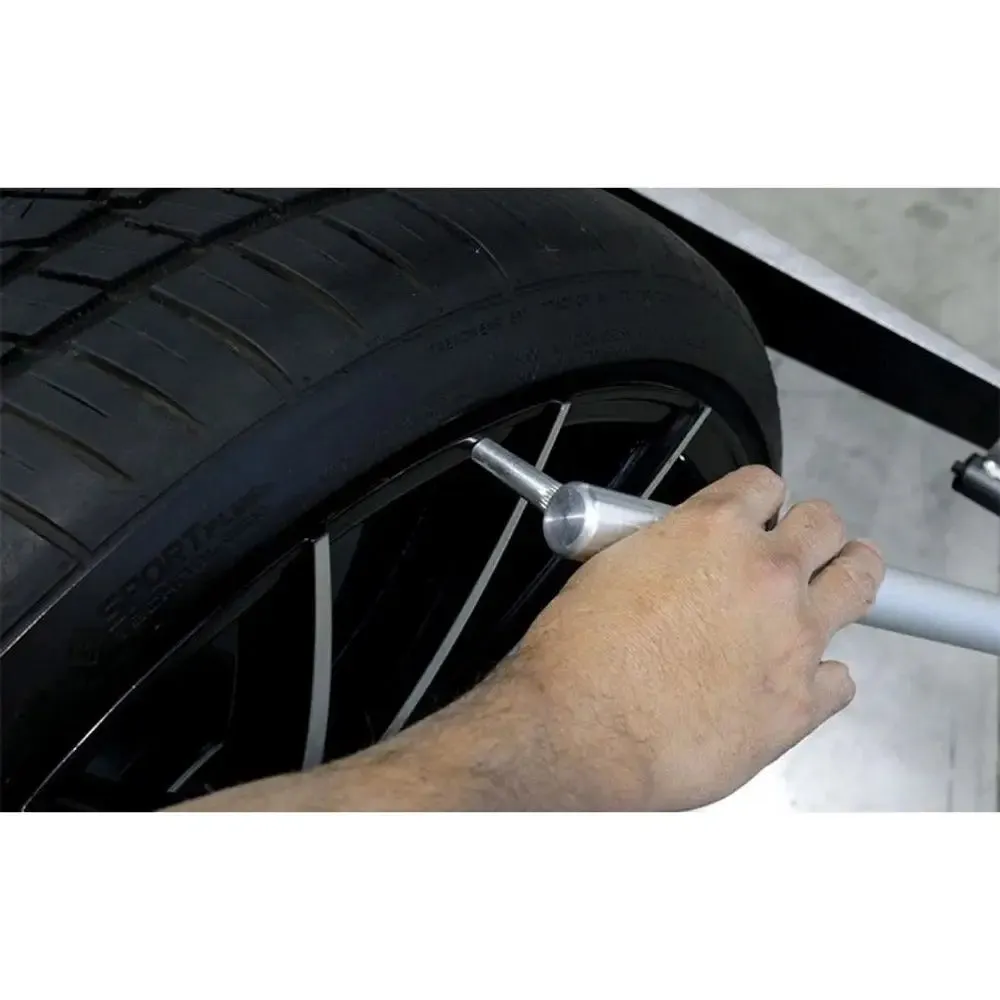

Automatic Wheel Data Entry: This balancer features Ranger's exclusive 3D Auto Data Entry ​technology, so you never have to input wheel parameters again manually. It takes most techs an average of three seconds to retrieve the wheel diameter, wheel width, and offset distance from this balancer. Our extendable DataWand™ automatically retrieves all outer-wheel information, while the inner data set arm detects the offset distance between the machine and your tire-and-wheel configuration.

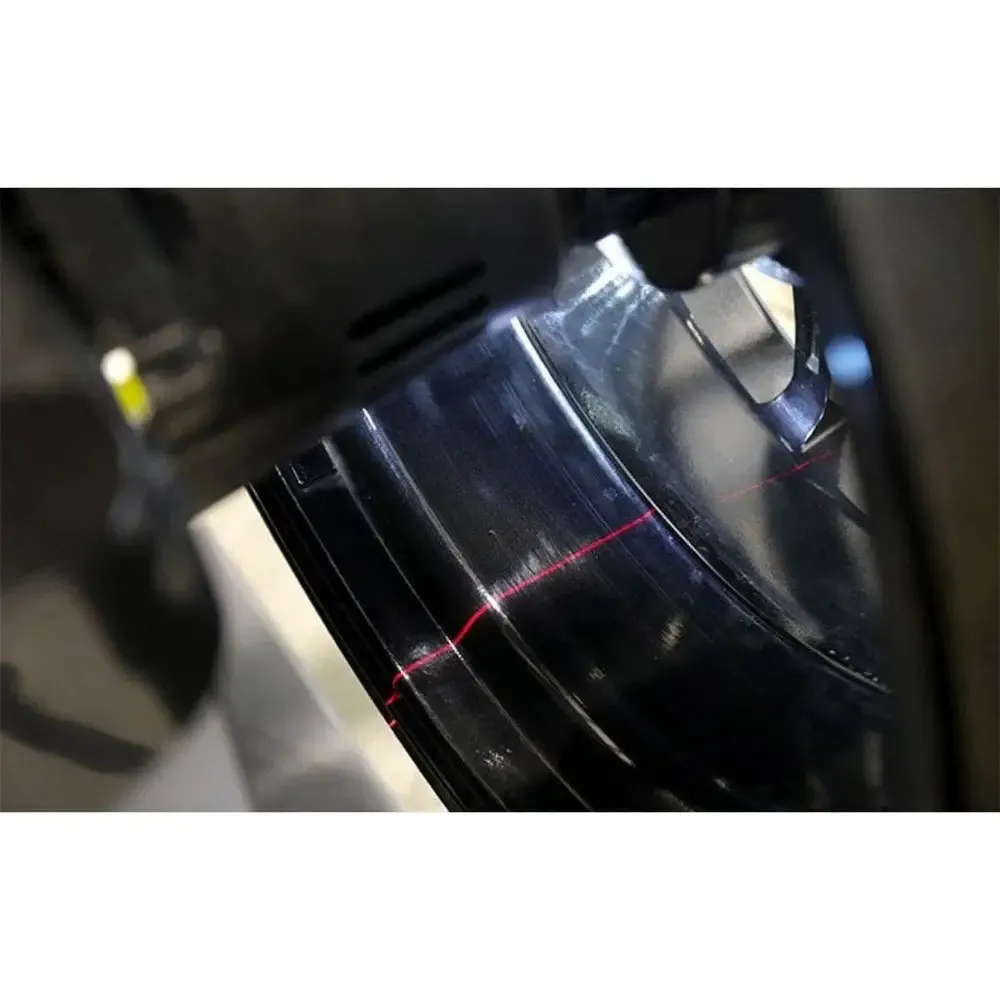

Automatic Braking: After a quick spin of the wheel, a dual-plane automatic electromagnetic braking system automatically slows, stops, and holds the wheel in the correct position, eliminating the need for a foot-activated brake with wheel-holding pedals. This gives technicians the freedom to move without restraint when placing weights on both the inner and outer faces of the wheel. At the precise instant, the brake is engaged, dual Laser-Spot™ lasers come to life and pinpoint exactly where either the stick-on or clip-on wheel weights should be fastened. A bright, wide LED beam is activated at the precise moment the balancer brake engages. The LED assist light, dual lasers, and auto brake will remain active until the stop button is manually pressed.

Multi-Directional Quartz Piezoelectric Load Sensors: Dual-component piezoelectric quartz load sensors and digital rotation encoder measure longitudinal, transversal, and shear effects multi-directional force unbalance detection. The piezoelectric force sensors are the most sensitive sensors we have ever made, offering superior stability and fatigue resistance for unlimited service life with your wheel balancer. The high-rigidity quartz crystal sensors offer high-frequency detection in all three measured directions.

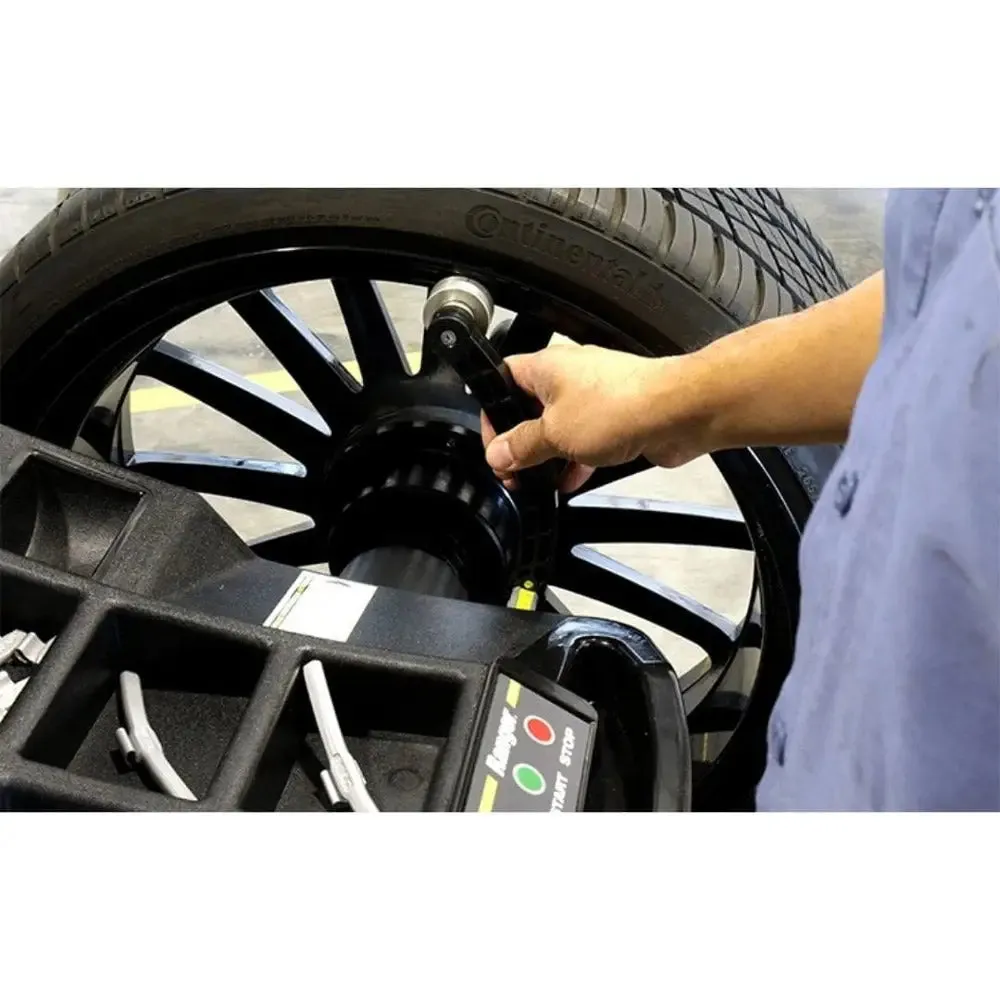

Quick And Precise Setup: A self-centering, non-marring Quick-Nut and bell adapter set ensures proper centering of the wheel and eliminates counterproductive setup errors. You'll mount wheels faster and easier, minimizing the risk of customer come-backs of costly wheel damage.

Mounting Cone Package: Included with every machine are both standard and heavy-duty mounting cones, as well as a full accessory tooling package. The LS43B laser balancer's tooling package includes our standard car and light truck cones, as well as a heavy-duty truck cone. This well-equipped package includes three automotive and light truck cones: 1.75” - 2.75”, 2.75” - 3.50” and 3.50” - 4.25”, as well as one truck cone 4.50” - 5.00”.

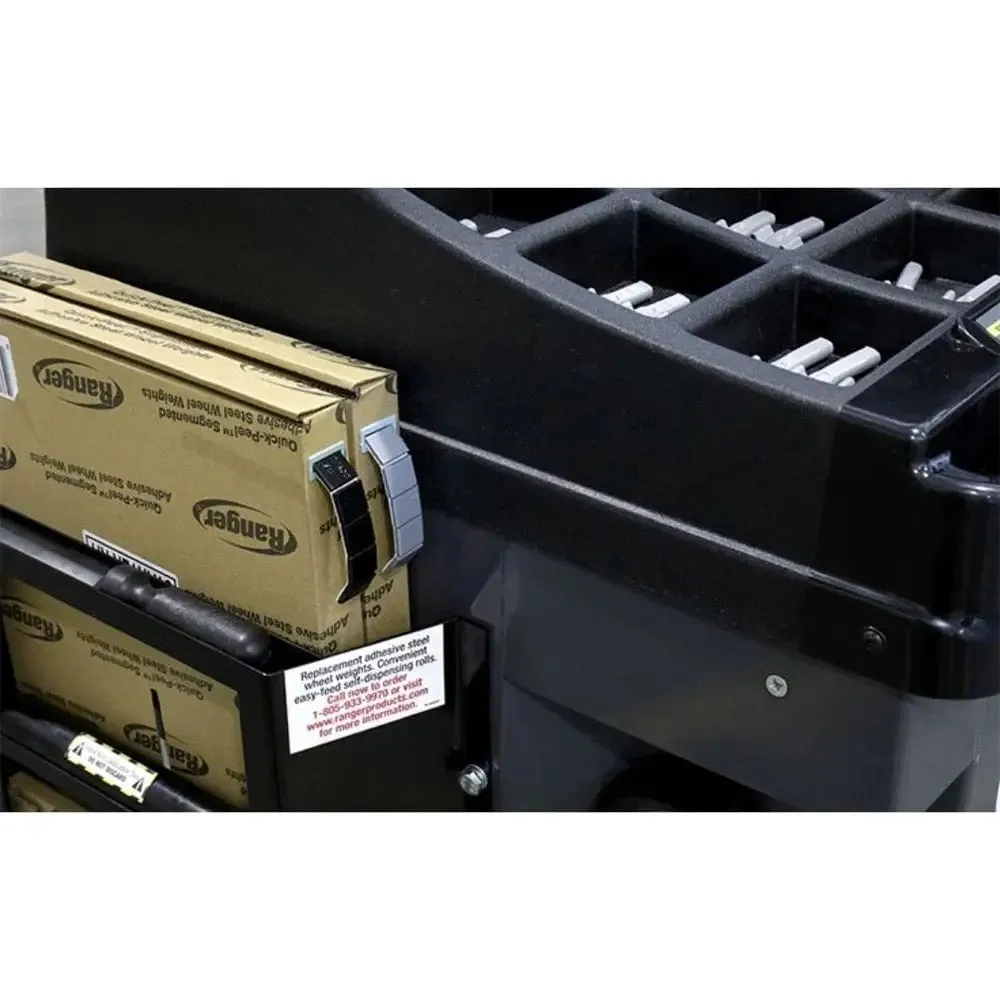

Tape Weight Feeder: An open-top side shelf accommodates a large roll of Ranger Quick-Peel™ adhesive tape weights. Included with your purchase is a complimentary wheel weight starter kit that fits directly into a built-in tape weight feeder. Additional weights are available for purchase at any time.

Automatic Weight Optimization: The LS43B laser wheel balancer features a computer interface with weight optimization technology that automatically calculates the minimum amount of weight needed to achieve optimal balance. Minimizing weight usage at your place of business is sure to add up to real savings over time and ultimately increase your bottom line.

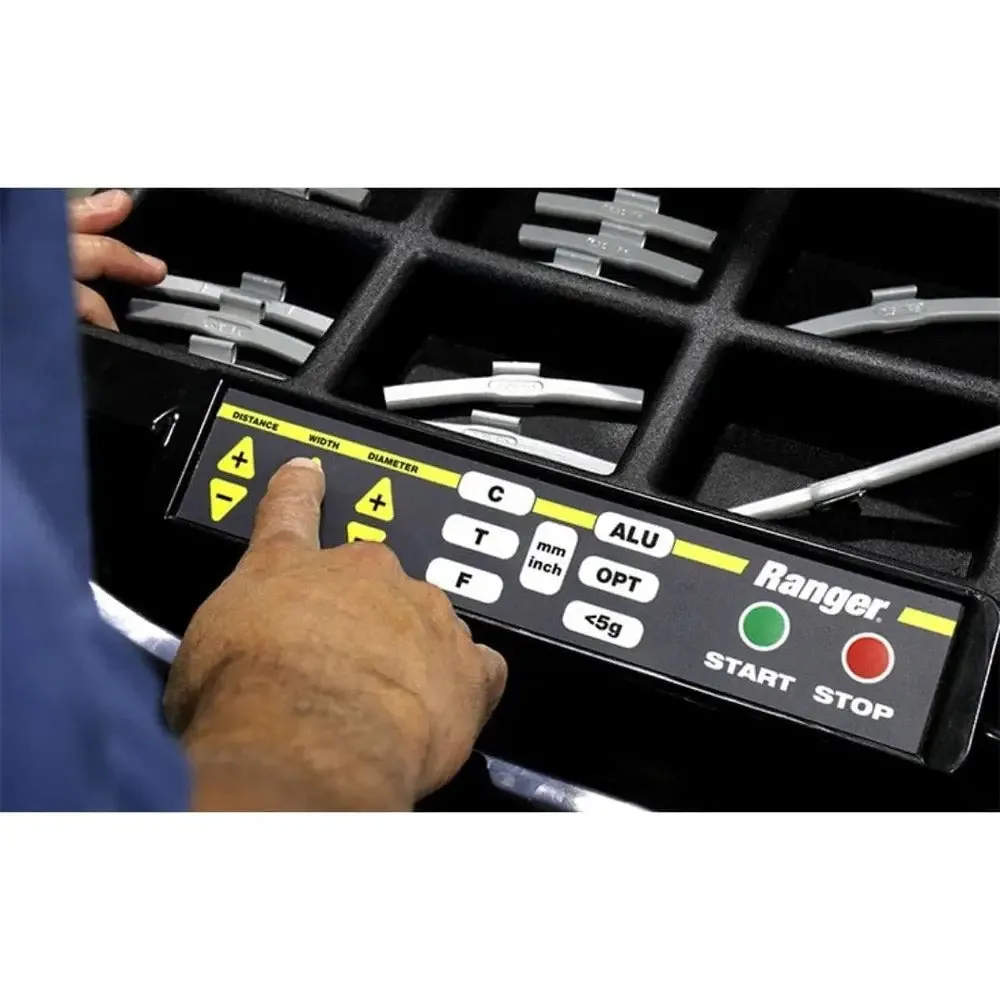

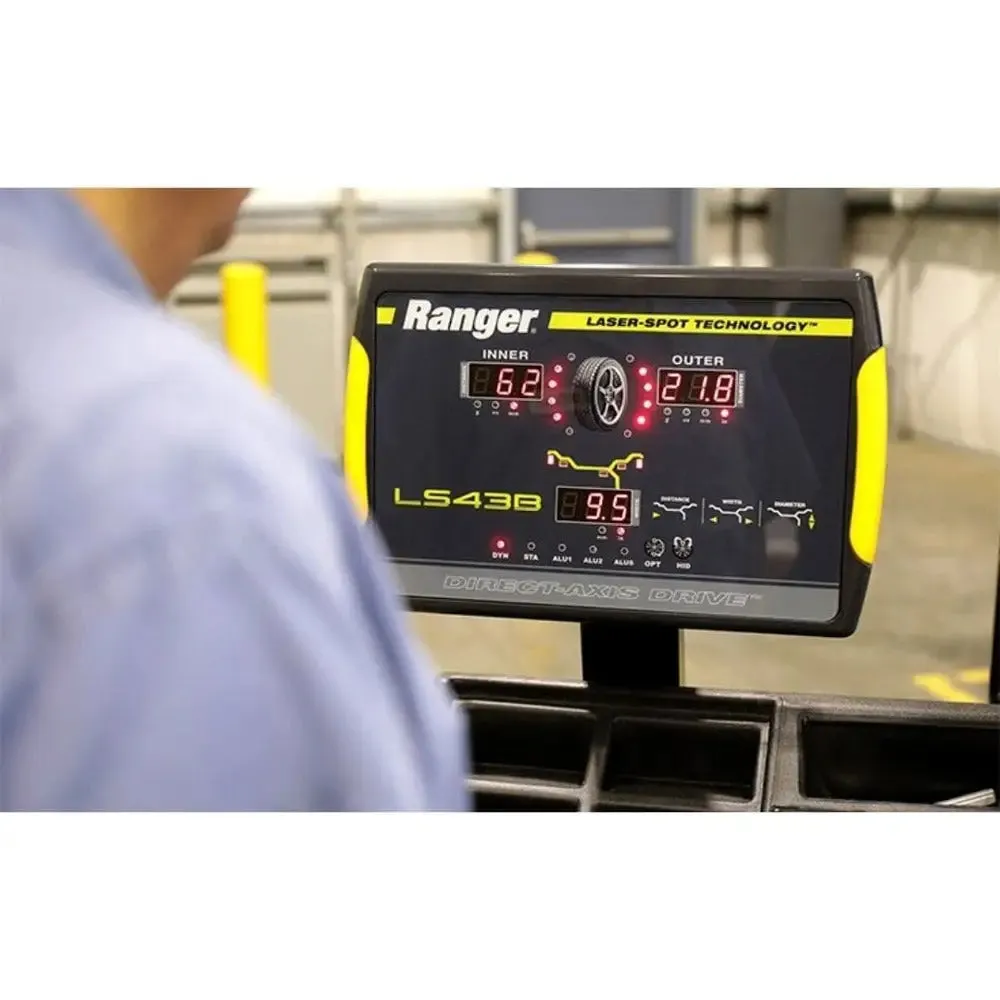

User-Friendly Operation: An anti-reflective, touch-pad display panel features tire and wheel assembly graphics that help simplify the speedy entry of wheel data. The display panel efficiently guides techs through each balancing procedure. Operator function keys are labeled with simple, easy-to-read icons to help operators identify and command all balancing functions.

LED Rolling Wheel Weight Displays: Bright LED weight placement indicators to show weight positions as the wheel is gently rolled to exact top-dead-center. Tiered weight placement indicators help identify out-of-sight weight placements, such as split-weight or hidden “behind-the-spoke” techniques. Indicators assist operators with clip-on and tape weight placement at precise locations for zero-on balancing.

Wheel Weight Starter Kit: A free kit of wheel weights is included with every new LS43B laser wheel balancer. Each unit’s starter kit contains one bulk roll of 100 silver adhesive steel tape weights, one bulk roll of 100 black adhesive steel tape weights, and one starter box of mixed clip-on steel weights. It’s our way of getting you off on the right foot. Additional Ranger wheel weights are available for purchase at any time.
