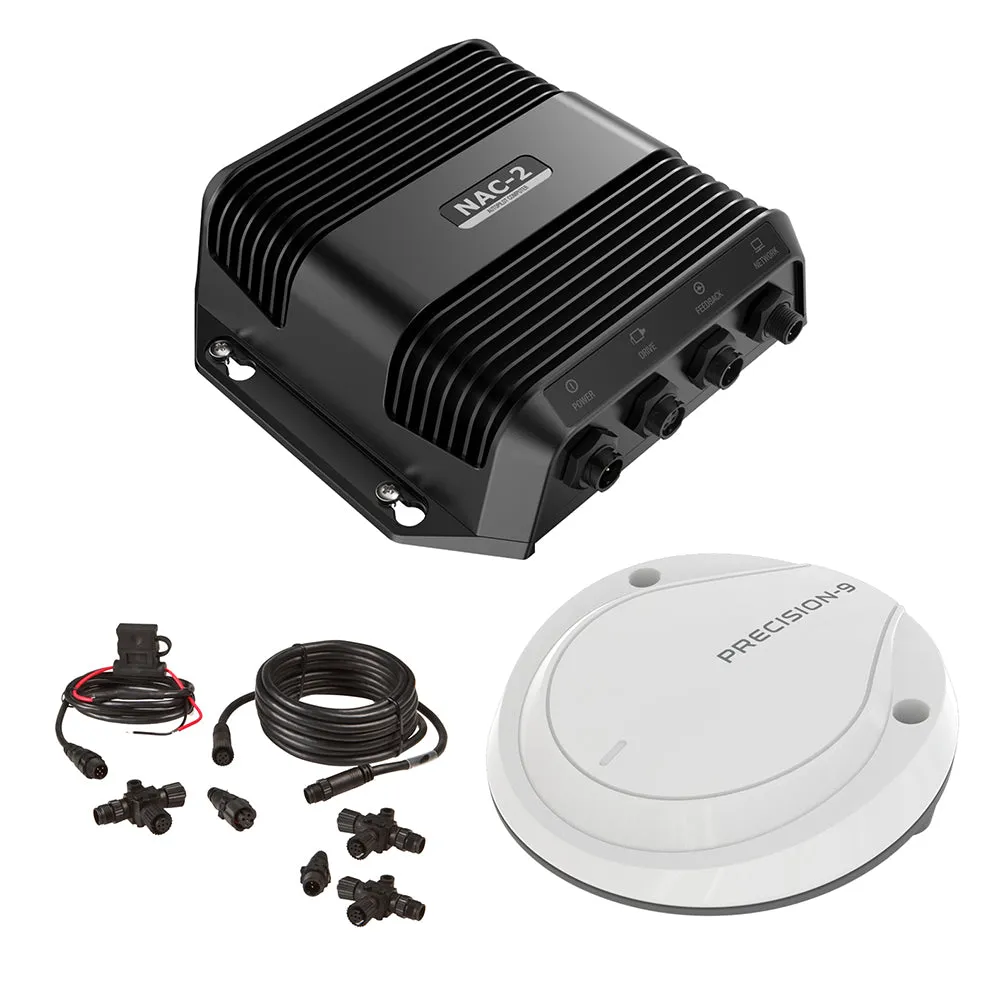

NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter Kit

Comprising of the high-current NAC-2 autopilot computer, Precision-9 compass and N2k Starter Kit.

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

Precision-9 Compass

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

N2k Backbone Starter Kit

NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators.

Features:

  • Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
  • Heading and ROT calculated using sensor data from 9 axes of rotation and motion
  • Accurate and reliable solid-state sensor technology
  • Heading accuracy of ±2° after calibration
  • Easily adjustable mounting bracket allows bulkhead or up-mast installation
  • IPX7 waterproof. Best in class.
  • Simple installation with a single NMEA 2000® connection

    Specifications:
    • Operating temperature: -25°C to 55°C (13°F to 131°F)
    • Protection: Splashproof, IPx5
    • Weight: 0.6 kg (1.3 lbs)
    • Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm
    • Power supply: 9-31.2 V DC
    • Load: 140 mA drive unit load
    • Performance: Drive: 8 A cont., 16A for 1s
    • Network: 1xMicroC (NMEA2000)
    • Feedback: Variable voltage/resistive 0-5V
    • Drive output: To PUMP-1 or HELM-1
    • Power supply: 9-31.2 V DC
    • Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
    • Clutch: 12/24V DC, min 10mA, max 3A

Precision-9 Specifications:

  • Dimensions: H: 36mm (1.42"), W & D: 119mm (4.69")
  • Weight: Module - 165g (5.8oz), Bracket - 130g (4.6oz)
  • Supply and interface: 8-16 V via NMEA 2000
  • Power consumption: 0.4 W
  • NMEA 2000 Load Equivalence No. (LEN): 1
  • NMEA 2000 ports (input/output): 1
  • Calibration: Automatic (User Prompted)
  • Repeatability: ± 1.0° (or better)
  • Roll/Pitch range: ± 45°
  • Heading accuracy: ± 2° after calibration
  • Dynamic performance: with random excitation of ± 10° at max 1 Hz: |Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2°
  • Environmental protection: IPx7
  • Compass safe distance: 0.5M(1.7')
  • Temperature range operation: -25 to 65°C (-13 to 149°F)
  • Temperature range Storage: -30 to 70°C (-22 to 158°F)

Specifications:

  • Steering Type: Hydraulic
  • Box Dimensions: 10"H x 10"W x 16"L WT: 7.2 lbs
  • UPC: 9420024155653

Simrad NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter Kit [000-13337-001]

  • DefaultTitle

$ 69.57

$ 90.44
