- Approx. dimensions: 44,1 x 20,95 x 4,4 cm
- Energy consumption: 87,3 W
- Product with plug: Yes
- Type of plug: Plug EU
- Characteristics:
- Wireless
- LED indicator
- Type:
- Switch
- Cupboard
- Speed:
- 1 Gbps
- 10 Gbps
- Ports: 28
- Country/Region of manufacture: Spain
- Colour: Black
- Voltage:
- 220 V
- 100 - 240 V
- Ventilator: 2
- Number of slots: 4
- Connections:
- RJ45 x 24
- Wireless
- Form factor: 1U
- Approx. temperature: - 20ºC / 70°C
- Safety: IGMP

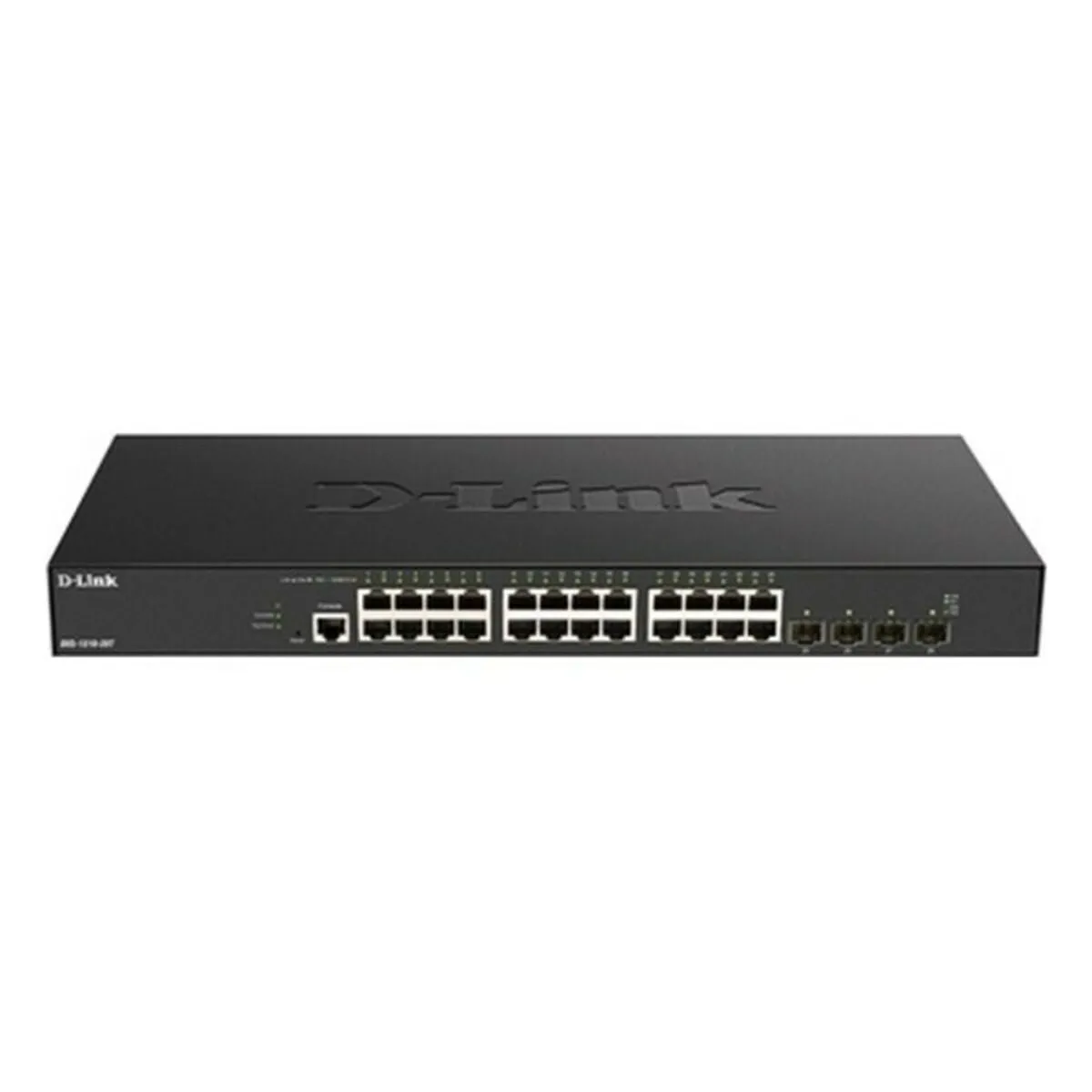

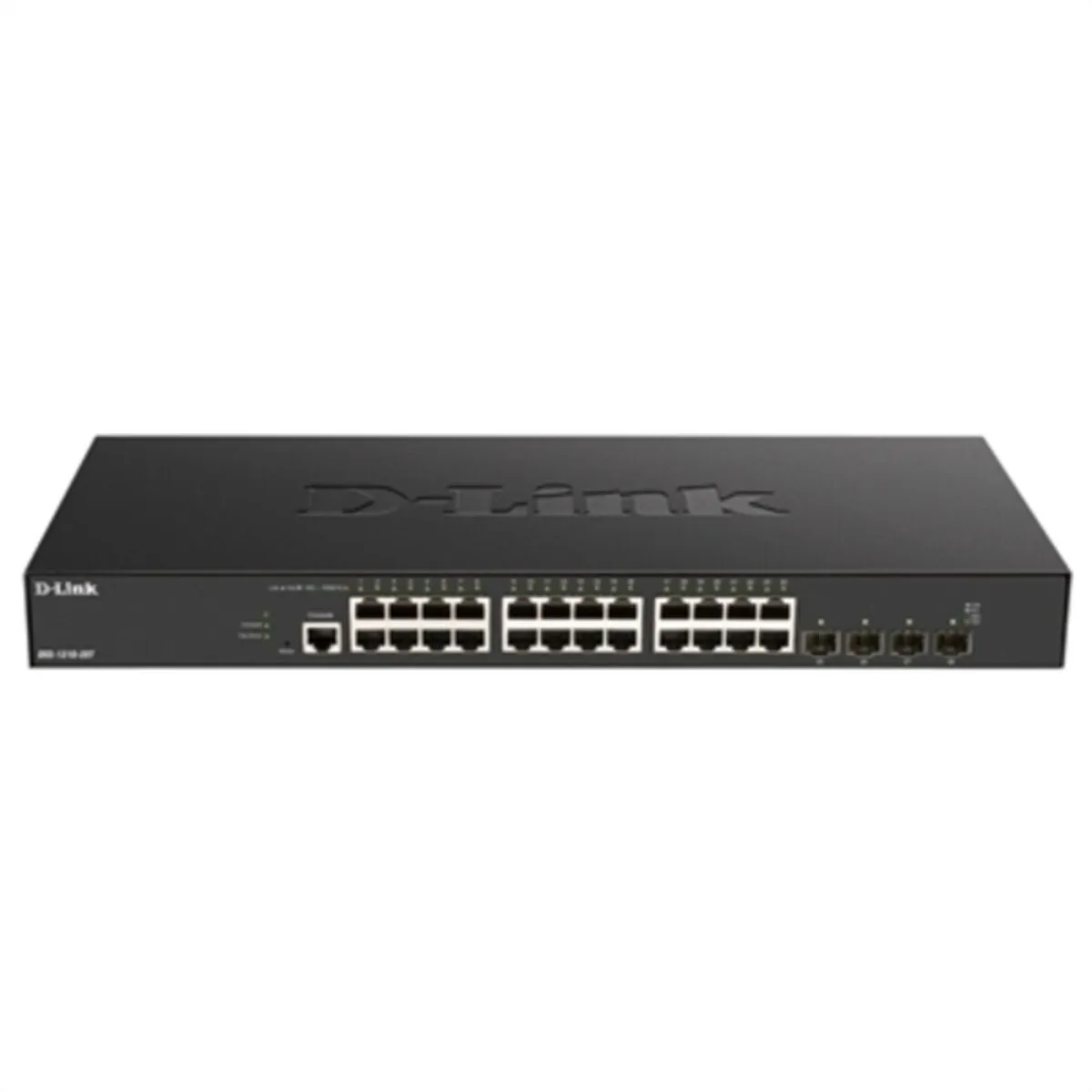

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switches capable of servicing a range of network needs in any business environment. The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as either an aggregation/access switch in large enterprise environments or deployed at the core of an SMB network. With high performance and low latency, these 10G smart-managed switches fulfil the needs of virtualisation, cloud services, and server-to-server applications. The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time, inter-VLAN static routing helps by reducing the pressure of routers and backbone networks, improving overall network efficiency. The free D-Link Network Assistant utility allows multiple D-Link devices within the same L2 network to be discovered and managed. These switches also provide management through the multi-lingual web UI, a full command-line interface (CLI) through Telnet, a console port, as well as D-View 7 Network Management System.
- Switch type: Managed
- Quality of Service (QoS) support: Y
- Web-based management: Y
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- SFP module slots quantity: 4
- Console port: RJ-45
- Networking standards: IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z
- Cable types supported: Cat6,Cat6a,Cat7
- Port mirroring: Y
- Flow control support: Y
- Link aggregation: Y
- Auto MDI/MDI-X: Y
- Spanning tree protocol: Y
- VLAN support: Y
- Number of VLANs: 4094
- MAC address table: 32000 entries
- Switching capacity: 680 Gbit/s
- Forwarding rate: 505.92 Mpps
- Store-and-forward: Y
- Jumbo frames support: Y
- Jumbo frames: 9000
- Access Control List (ACL): Y
- Access Control List (ACL) rules: 256
- IGMP snooping: Y
- Management protocols: SNMP v1/v2c/v3
- GARP VLAN Registration Protocol (GVRP): Y
- Rack mounting: Y
- Form factor: 1U
- Product colour: Black
- LED indicators: Activity, Link, Speed
- Number of fans: 2 fan(s)
- Certification: CE Class A FCC Class A VCCI Class A IC BSMI
- Noise level: 51.9 dB
- AC input voltage: 100 - 240 V
- Power consumption (max): 87.3 W
- Power over Ethernet (PoE): N
- Operating temperature (T-T): -5 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Width: 441 mm
- Depth: 209.5 mm
- Height: 44 mm
- Weight: 3.07 kg
